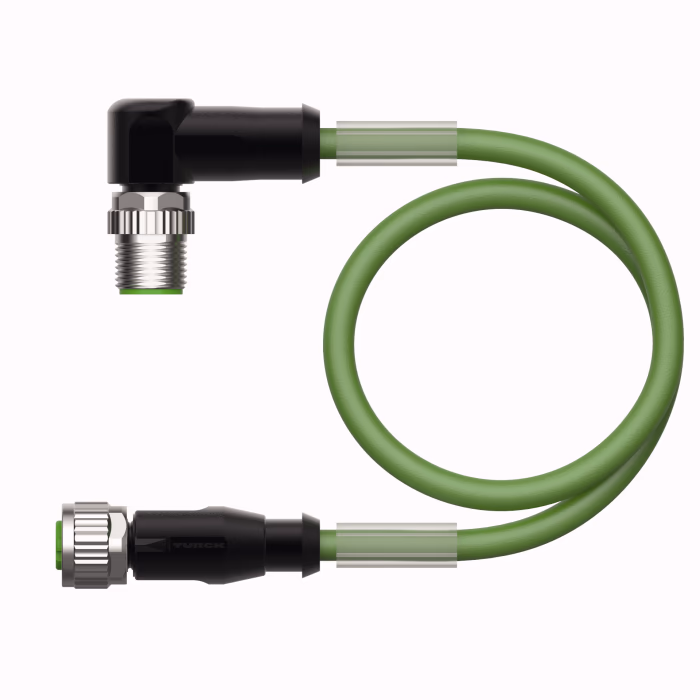

Industrial Ethernet/PROFINET Cable WSSD-RKSD-4416-2M
Industrial Ethernet/PROFINET Cable
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Application | Data |
| Approvals | UL Listed |
| Cable color | Green |
| Cable length (m) | 2 |
| Cable quality | PUR |
| Connector A | Angled, D-coded, M12×1, Male |
| Connector B | D-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 3 |
| Design | Extension Cable |
| Network protocol | Ethernet |
| Number of Conductors | 4 |
| Number of pins | 4 |
| Voltage output | 48 |
| Core cross section mm? | 0.32 |
