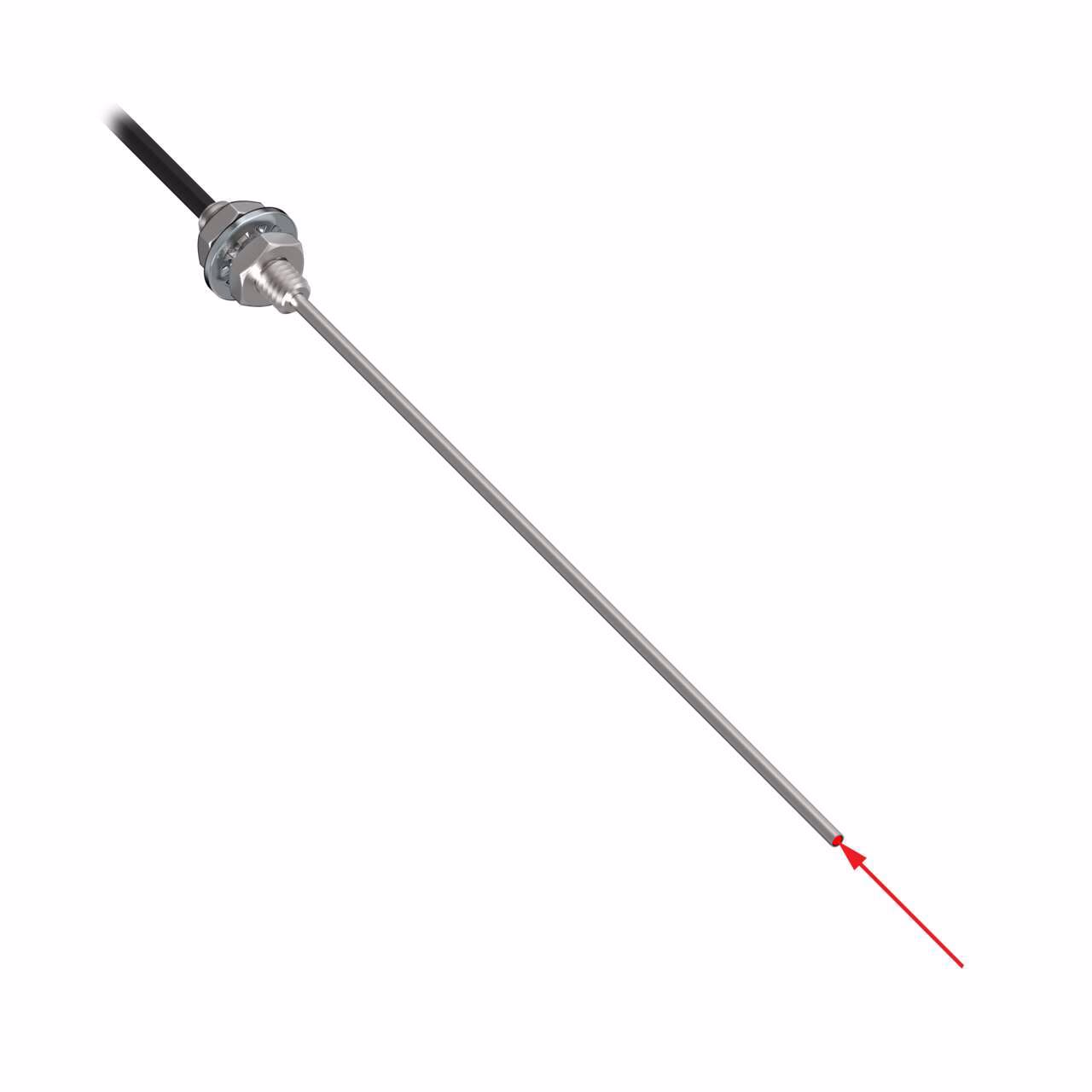

Inline Fiber Optics – Banner – PIP46UHF
Plastic Fiber, Opposed Mode
Core Dia.: 1 mm; Fiber Length 2 m
Probe
DuraBend, Free cut
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | 1.5 mm |
| Fiber Sensing End Size - Mounting Area | M4 |
| Fiber Sensing End Tip | Bendable-Probe |
| Max Distance: DF-G2 (mm) | No Data |
| Minimum Repeat Bending Endurance | 1000 |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Thread |
| Sensing End Segment 2 | Bendable-Probe |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Reflective |
| Core cross section mm? | 2 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 2 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 4 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 1 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Plastic Fiber, Opposed Mode
Core Dia.: 1 mm; Fiber Length 2 m
Probe
DuraBend, Free cut
