IP67 Junction Box, 6-Channel JBBS-48SC-E613/EX
IP67 Junction Box, 6-Channel
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Application | Data |
| Approvals | ATEX |
| Connection technology signal | M12 |
| Device type | Active fieldbus junction box |

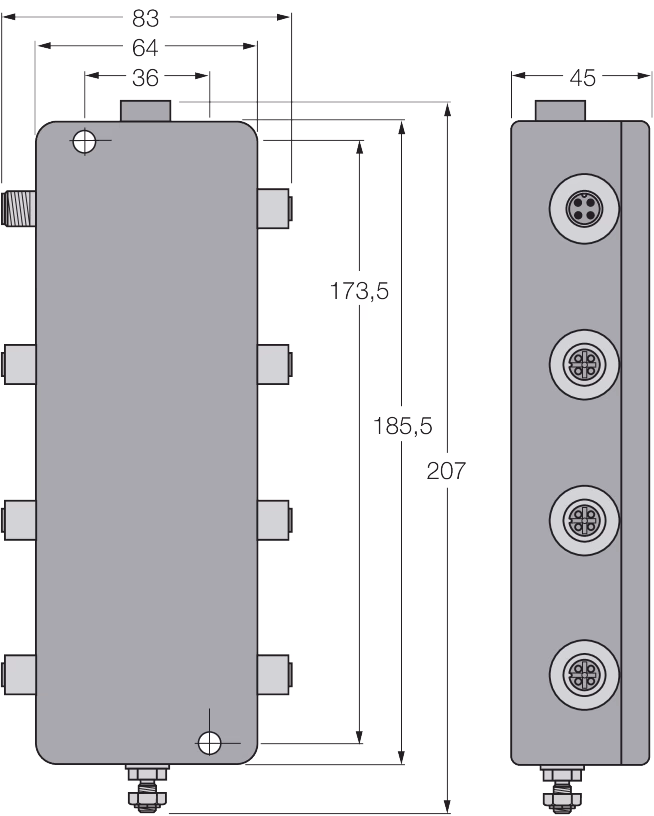

| Dimensions | 185.5 mm x 64 mm x 45 mm |
| Electrical output | M12 receptacle |
| Housing material | Powder-coated die-cast aluminium |
| Installation area | zone 1 |
| Network protocol | PROFIBUS-PA |
| Number of channels | 6 |
| Protection class | IP67 |
