Isolating switching amplifier IM18-DI03-4S-5R-S/24VDC/CC
Isolating switching amplifier
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Digital output | Relay output |

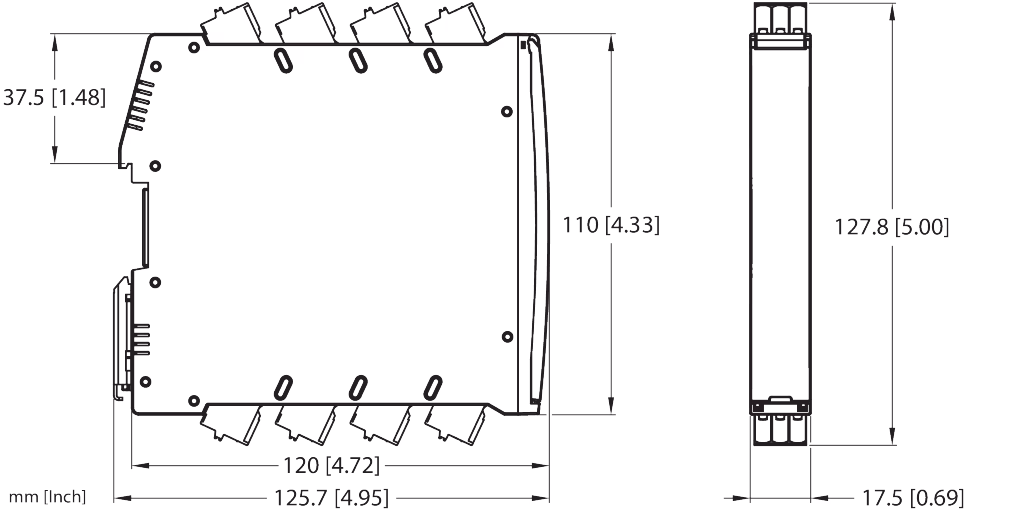

| Dimensions | 120 mm x 17.5 mm x 128 mm |
| Electrical output | 3-pin, Removable spring-type terminals |
| Ex version | no |
| Housing material | Plastic |
| Housing quality | Polycarbonate/ABS |
| Number of channels | 4 |
| Power supply | 24 VDC |
| Protection class | IP20 |
| Signal type | Digital input |
| Functional safety (SIL/PL) | SIL2 |
