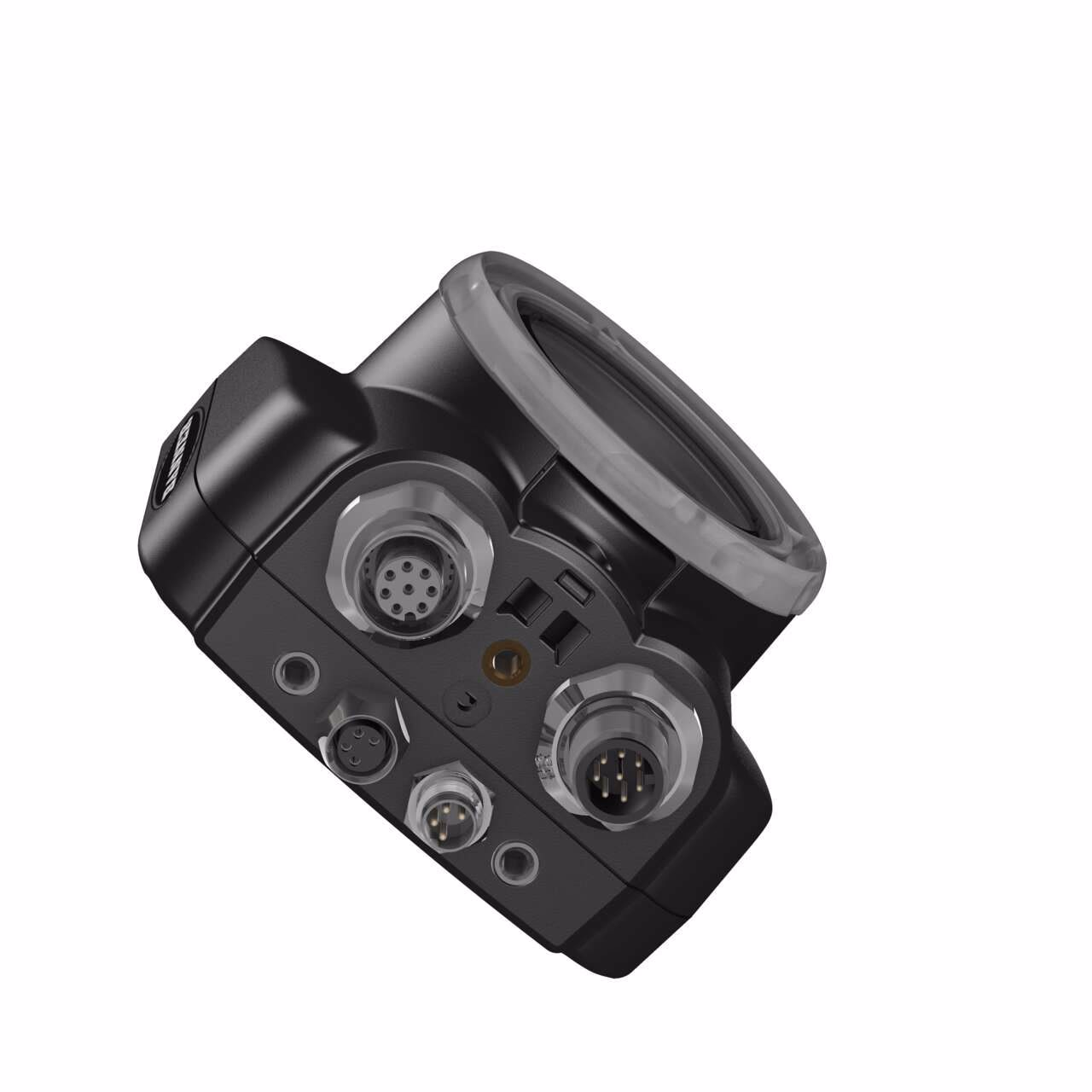

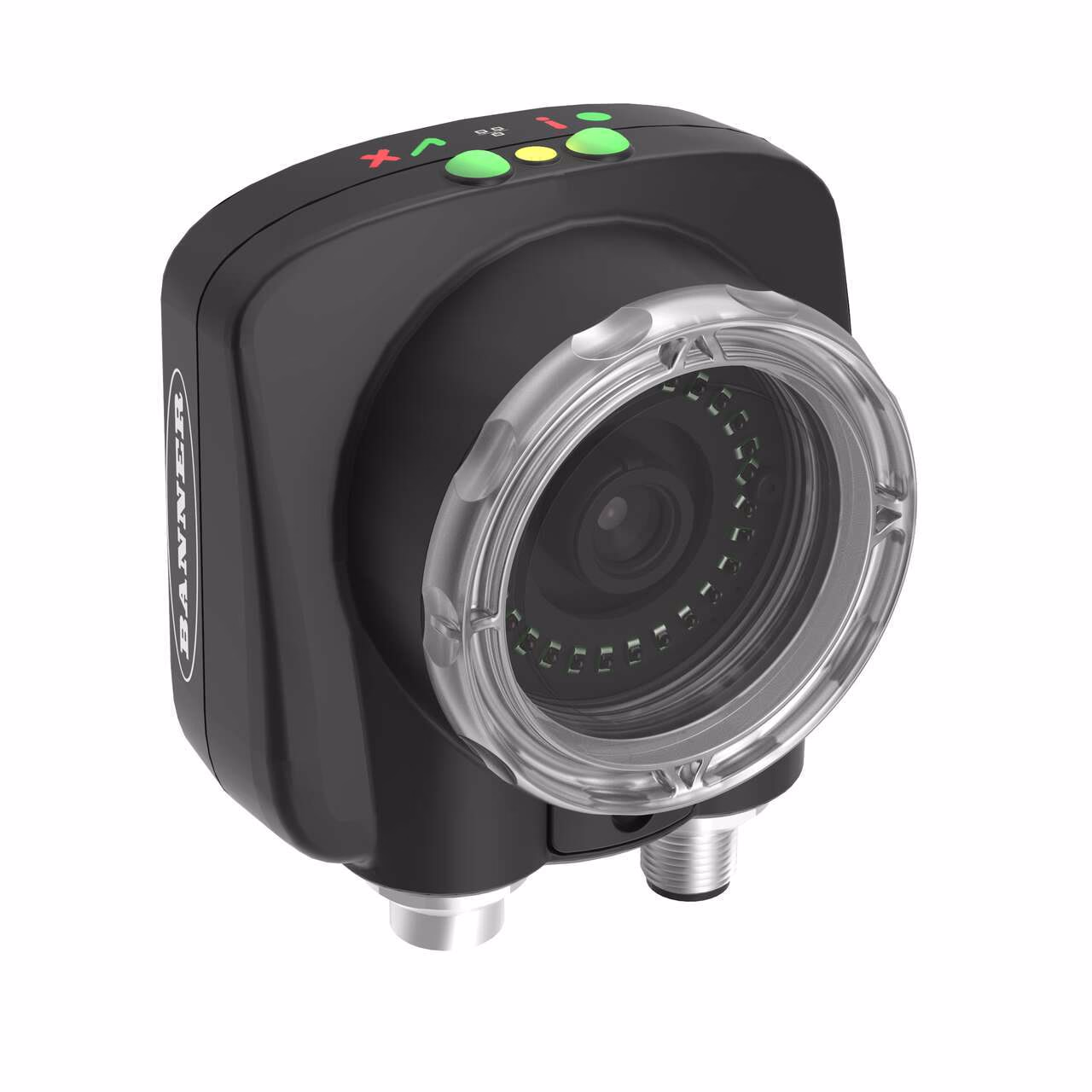

iVu BCR Series Barcode Reader – Banner – IVU2PRBR12
iVu PLUS BCR Gen2 Remote Sensor with Ethernet
Red Ring Light and 12 mm lens
Requires power cordset and Bracket
Ethernet and USB cordset optional
| Device type | Imager BCR |
|---|---|
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Feature | PC Interface, Touchscreen Interface, Washdown Rated |
| Item Status | RELEASED |
| Network protocol | No |
| PROFINET | Yes |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| RS-232 | Yes |
| USB | No |
| PCCC | Yes |
| RS-422 | No |
| Camera Housing Size (HxWxL mm) | 79 x 81 x 52 |
| Imager Type | Grayscale |
| FTP | No |
| Autofocus | No |
| Lens (mm) | 12 |
| Image Resolution | 752 x 480 pixels |
| Light Color | Red |
| Code Type | 1D, 2D |
| Touchscreen Display | Remote |
| Options Available | Modbus |
Description
iVu PLUS BCR Gen2 Remote Sensor with Ethernet
Red Ring Light and 12 mm lens
Requires power cordset and Bracket
Ethernet and USB cordset optional
