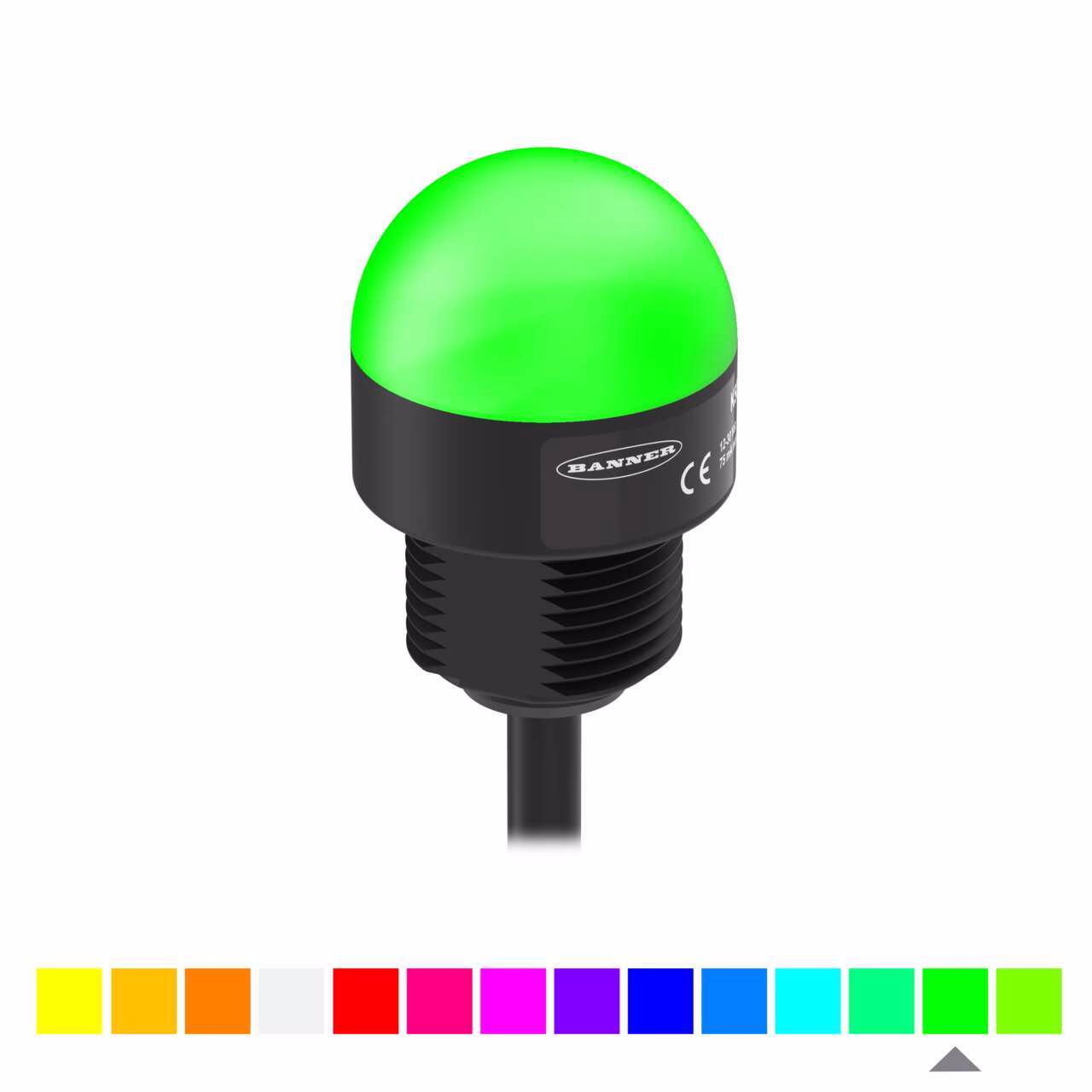

K30 Pro Series 30 mm Programmable Multicolor Indicator – Banner – K30PLKQP
K30 Pro with IO-Link Series: RGB Indicator
Voltage: 18-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: Bimodal; Colors: Multicolor
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Color Technology | RGB Configurable |
|---|---|
| Connection | Pigtail QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | IO-Link Controlled |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Environmental Rating | IP67; IP69K |
| EPLAN Original Sent Date | 06/12/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | Programmable |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 44.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 30 |
| Max Current Color (mA) | 33.0 |
| Storage Temp (C) | -40 to 70 |
Description
K30 Pro with IO-Link Series: RGB Indicator
Voltage: 18-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: Bimodal; Colors: Multicolor
150 mm (6 in) 4-pin M12 PVC Pigtail QD
