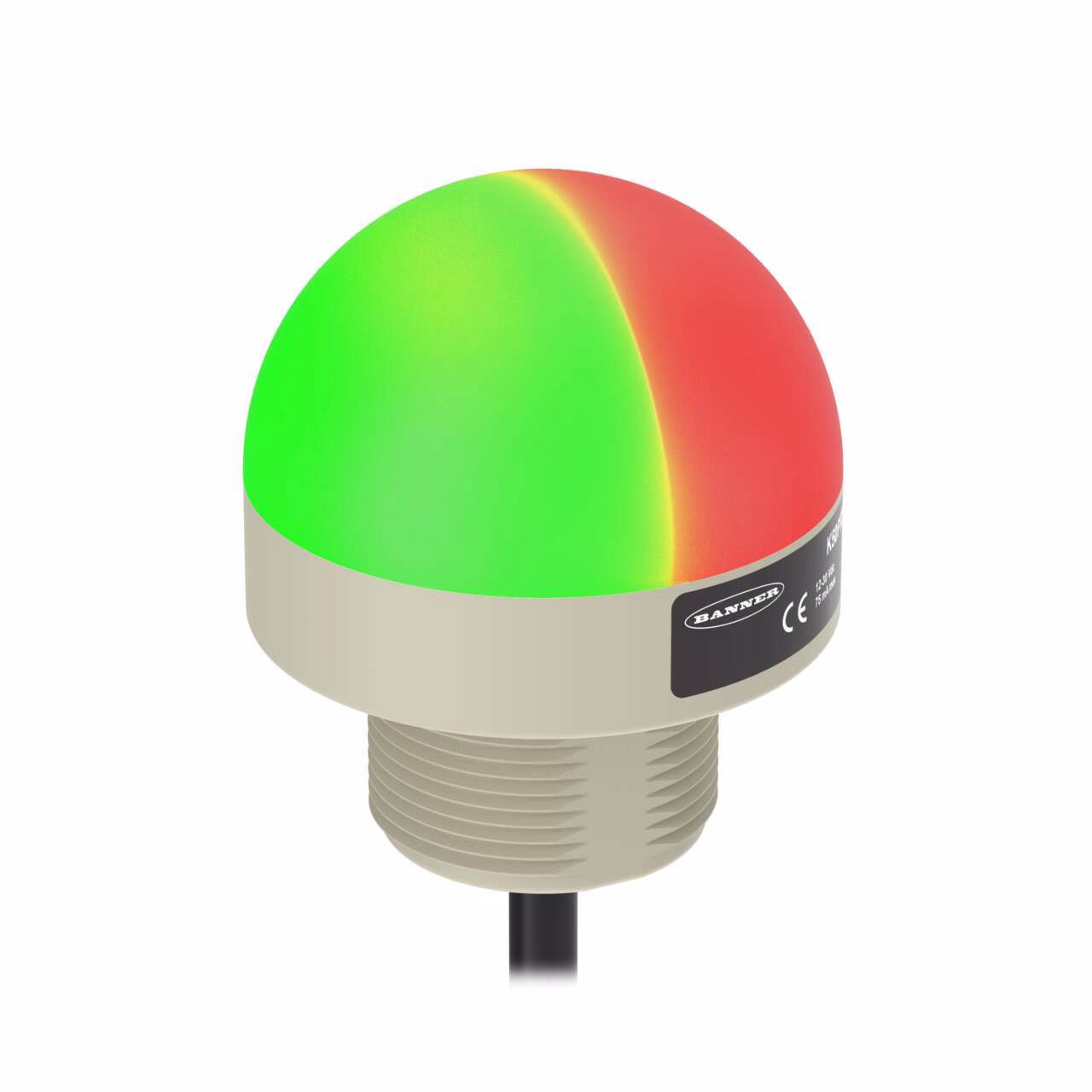

K50 Pro Series 50 mm Programmable Multicolor Indicator – Banner – K50L2FRGB7QP
K50 Pro Series: 7-color RGB Indicator FDA
Voltage: 10-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K
Input: Bimodal; Colors: Multicolor
150 mm (6 in) 5-pin M12 PVC Pigtail QD
| Color 5 - Wavelength/Color Temp/Coordinates | 5950K |
|---|---|
| Color 6 - Wavelength/Color Temp/Coordinates | 0.365, 0.176 |
| Color 7 - Wavelength/Color Temp/Coordinates | 0.154, 0.321 |
| Color Option 2 | Green |
| Color Option 5 | White |
| Color Option 6 | Magenta |
| Color Option 7 | Cyan |
| Color Technology | RGB Configurable |
| Connection | Pigtail QD |
| Discrete | Yes |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Lumens Color 5 | 21.3 |
| Lumens Color 6 | 8.5 |
| Lumens Color 7 | 25.1 |
| Primary Housing Color | FDA Gray |
| Primary Window Material | Copolyester Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Wire Selectable Function | Multi-Function |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 530 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color 4 - Wavelength/Color Temp/Coordinates | 0.457, 0.485 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | Red |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Environmental Rating | IP66; IP67; IP69K |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Encapsulated, Quick Disconnect, Washdown Rated |
| Housing Style | Dome |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Lumens Color 1 | 6.3 |
| Lumens Color 2 | 21.4 |
| Lumens Color 3 | 4.7 |
| Lumens Color 4 | 17.2 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 7 |
| Number of Conductors | 5 |
| Operating voltage | 10-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 58.0 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | FDA Copolyester |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 50 |
| Touchscreen | No |
| USB | No |
| Slot width (mm) | 0.15 |
| Max Current Color (mA) | 220 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 250 |
Description
K50 Pro Series: 7-color RGB Indicator FDA
Voltage: 10-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K
Input: Bimodal; Colors: Multicolor
150 mm (6 in) 5-pin M12 PVC Pigtail QD
