K50R Series Radar Sensors – Banner – K50RF-4030-LKDQ

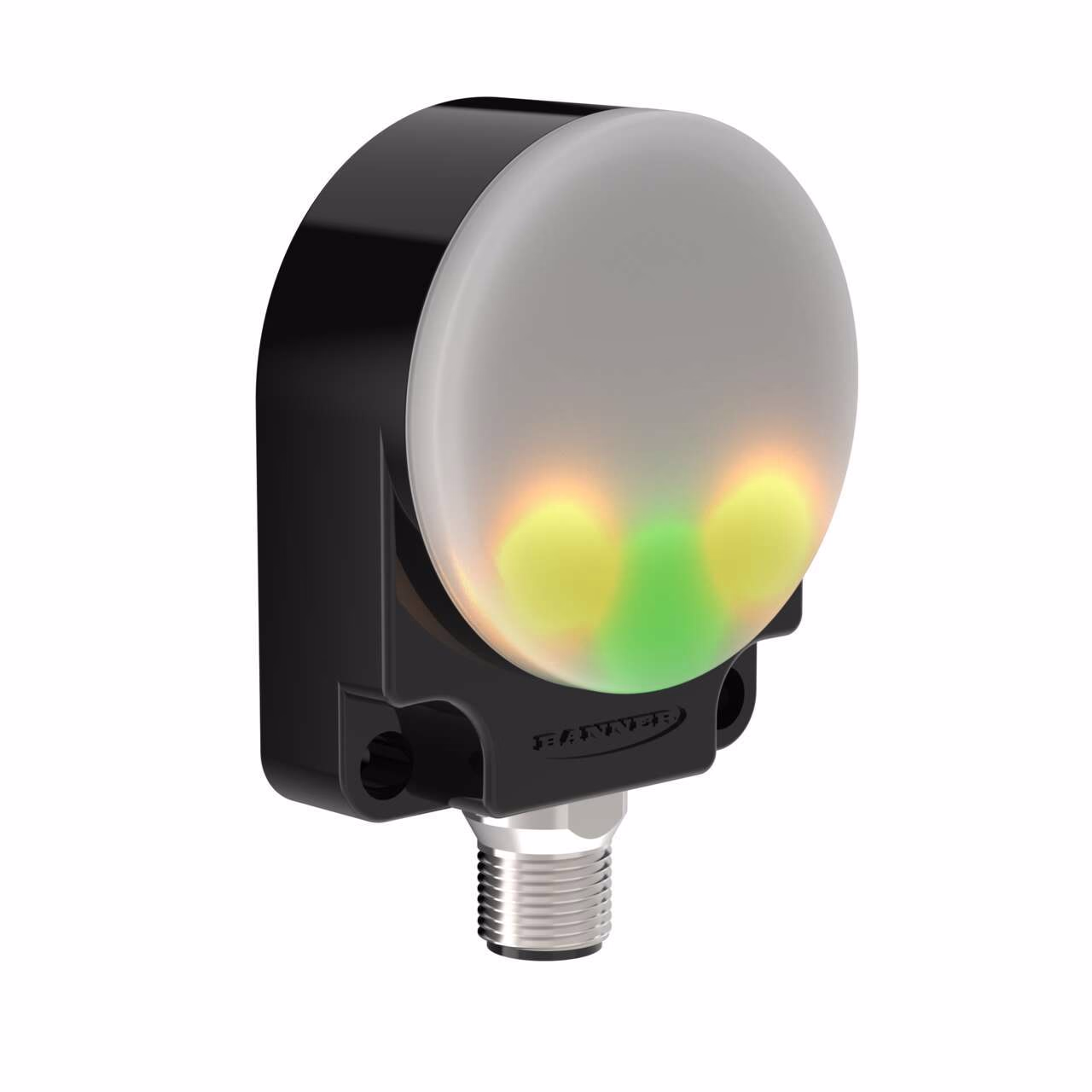

K50R R-GAGE Series Radar Sensor
Range 5.0 m; 40×30 degree FOV
Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP/NPN
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 50.0 |
| PC Configurable | Yes |
| PFM Output | Yes |
| Sensing Mode (General) | Proximity |
| Cert | Australia/New Zealand, US |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Original Sent Date | 07/03/2025 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach, Timing (Hold/Delay) |
| Frequency band | 60 GHz |
| Housing Style | Flat Pack |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Radio interface | No |
| Receptacle housing material B | ABS/Polycarbonate |
| RS-232 | No |
| Sensing Beam | Radar |
| Max Sensing Distance (mm) | 5000.0 |
Description
K50R R-GAGE Series Radar Sensor
Range 5.0 m; 40×30 degree FOV
Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP/NPN
5-pin M12 Integral QD
