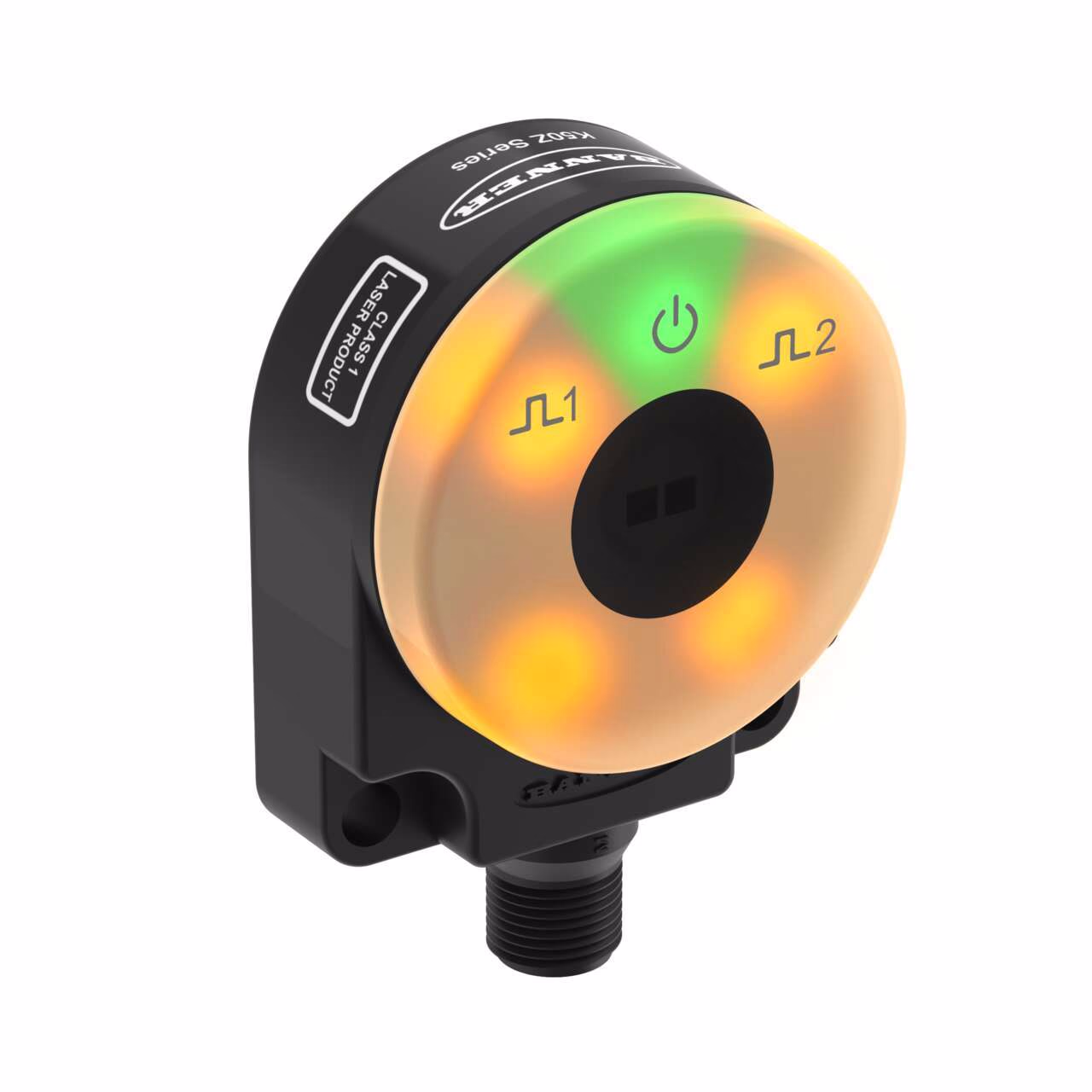

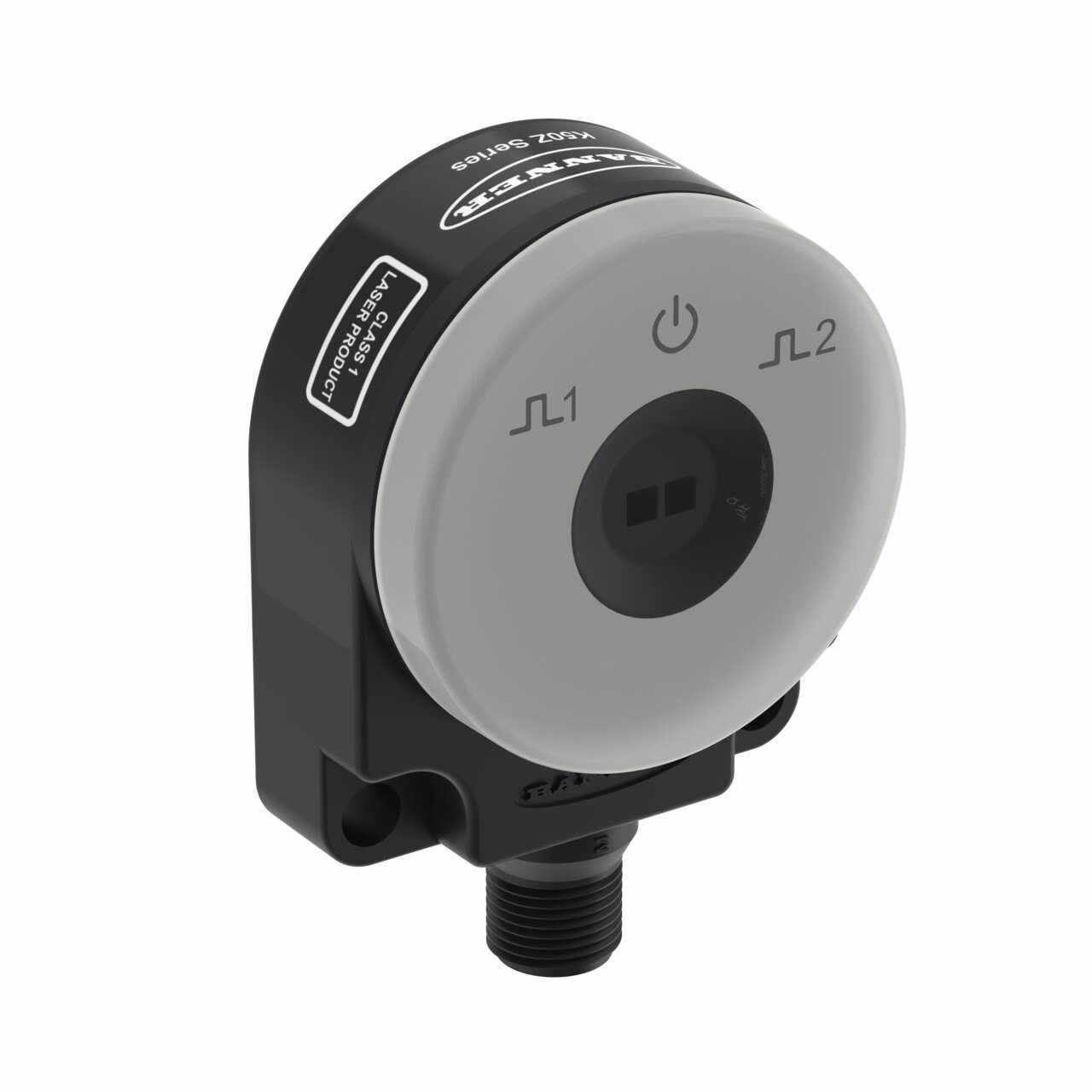

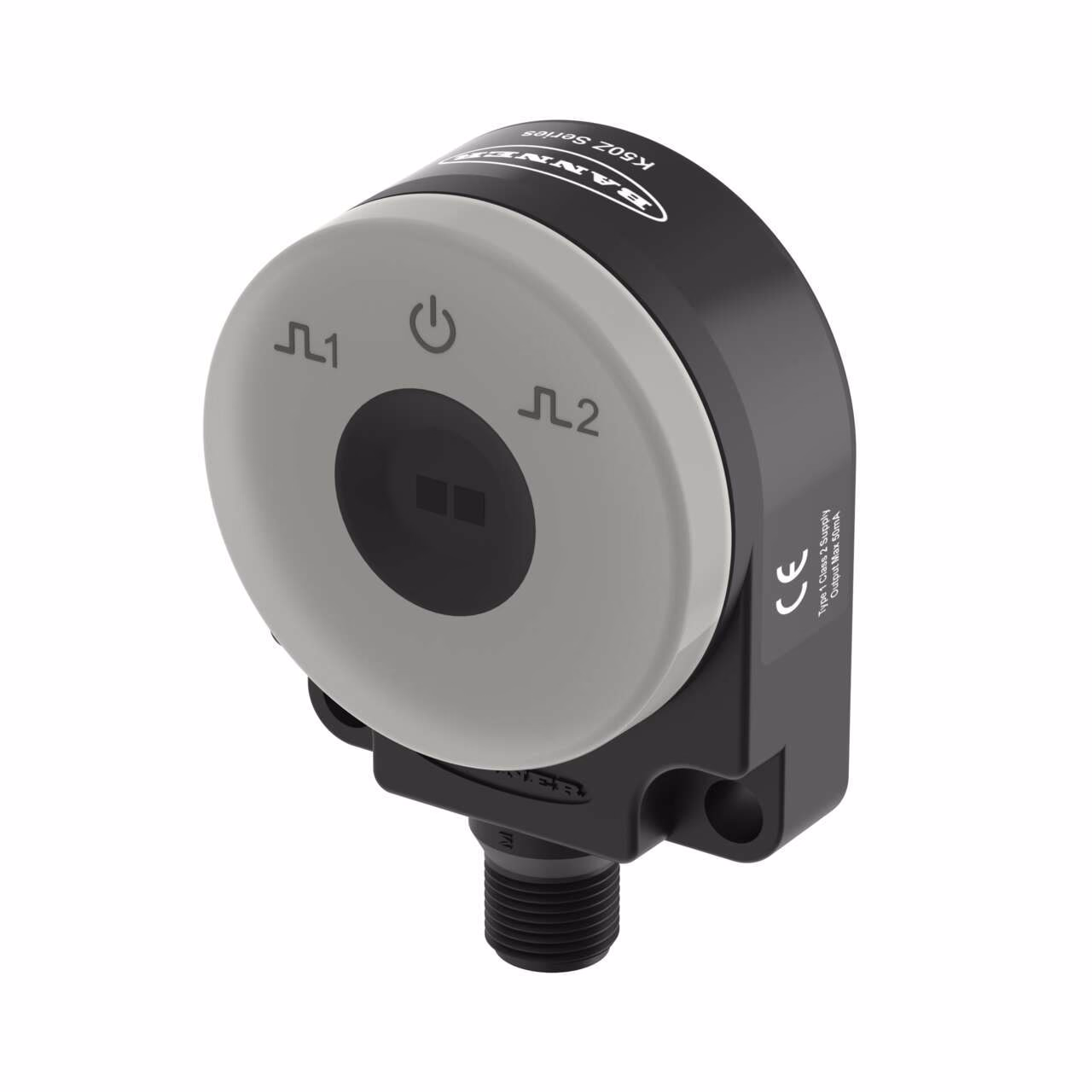

K50Z Multipoint Sensor – Banner – K50Z-FA2000KD-Q8
K50Z Series Multipoint Sensor
8×8 Pixels
2000 mm Range
45×45 Degree FOV
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 1 |
| Laser Control | No |
| Max Ambient Light (Lux) | 10000 |
| Minimum Sensing Distance (mm) | 20.0 |
| PC Configurable | Yes |
| PFM Output | Yes |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Status | Published |
| Feature | Quick Disconnect, Timing (Hold/Delay) |
| Housing Style | Flat Pack |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS/Polycarbonate |
| RS-232 | No |
| Sensing Beam | Infrared Laser |
| Max Sensing Distance (mm) | 2000.0 |
| FOV Type | Configurable; Multi-Zone |
Description
K50Z Series Multipoint Sensor
8×8 Pixels
2000 mm Range
45×45 Degree FOV
