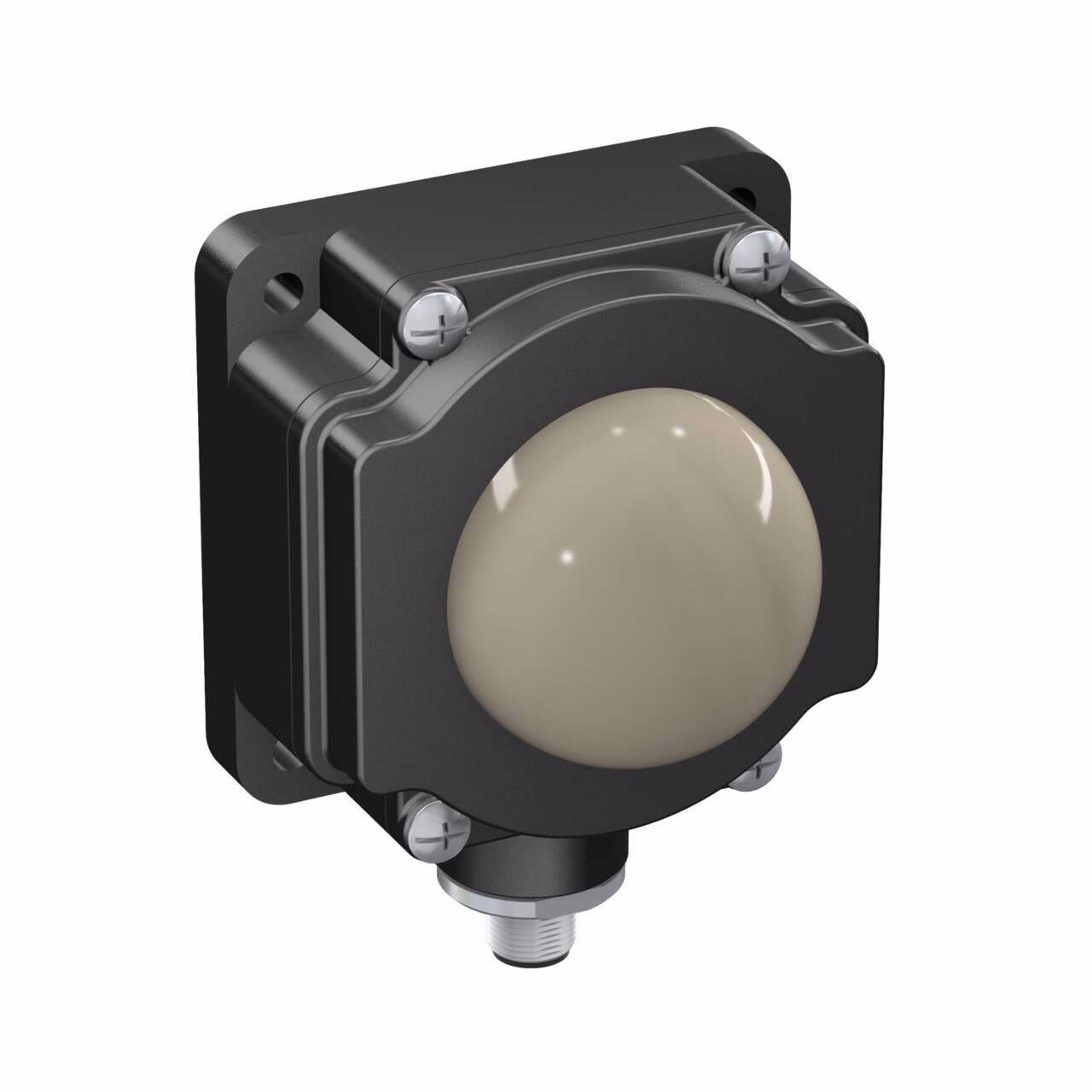

K80L Series Flat Mount Domed Indicators – Banner – K80LGROB4PQ8
K80 Series EZ-LIGHT: 4-Color Multi-Function Indication
Voltage: 18-30 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Orange Blue
8-pin M12 Integral QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Yellow |
| Primary Window Material | Acrylic Diffused |
| Wire Selectable Function | Multi-Function |
| Animation Option 1 | Multiple |
| Animation Option 2 | Multiple |
| Animation Option 3 | Multiple |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Color Option 3 | Orange |
| Color Option 4 | Blue |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat Mount – Dome Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Mounting | No Thread |
| Multi-Color Device | Single Color On – Alternating |
| Non-Illuminated | No |
| Number of colors/segments | 4 |
| Number of Conductors | 8 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 107.6 x 80.9 x 66.7 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 80 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 40 |
| Max Input Response Time (ms) | 10 |
Description
K80 Series EZ-LIGHT: 4-Color Multi-Function Indication
Voltage: 18-30 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Orange Blue
8-pin M12 Integral QD
