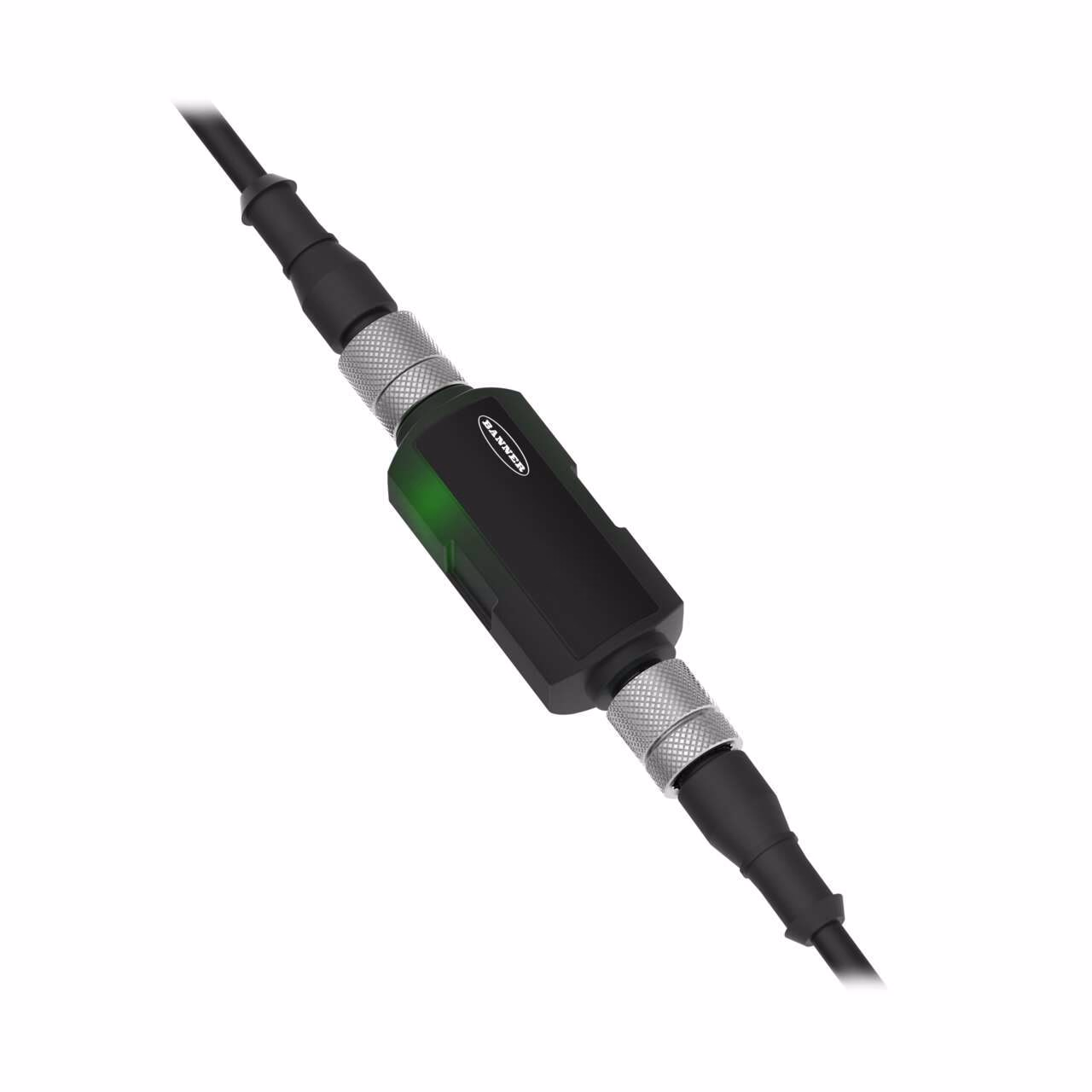

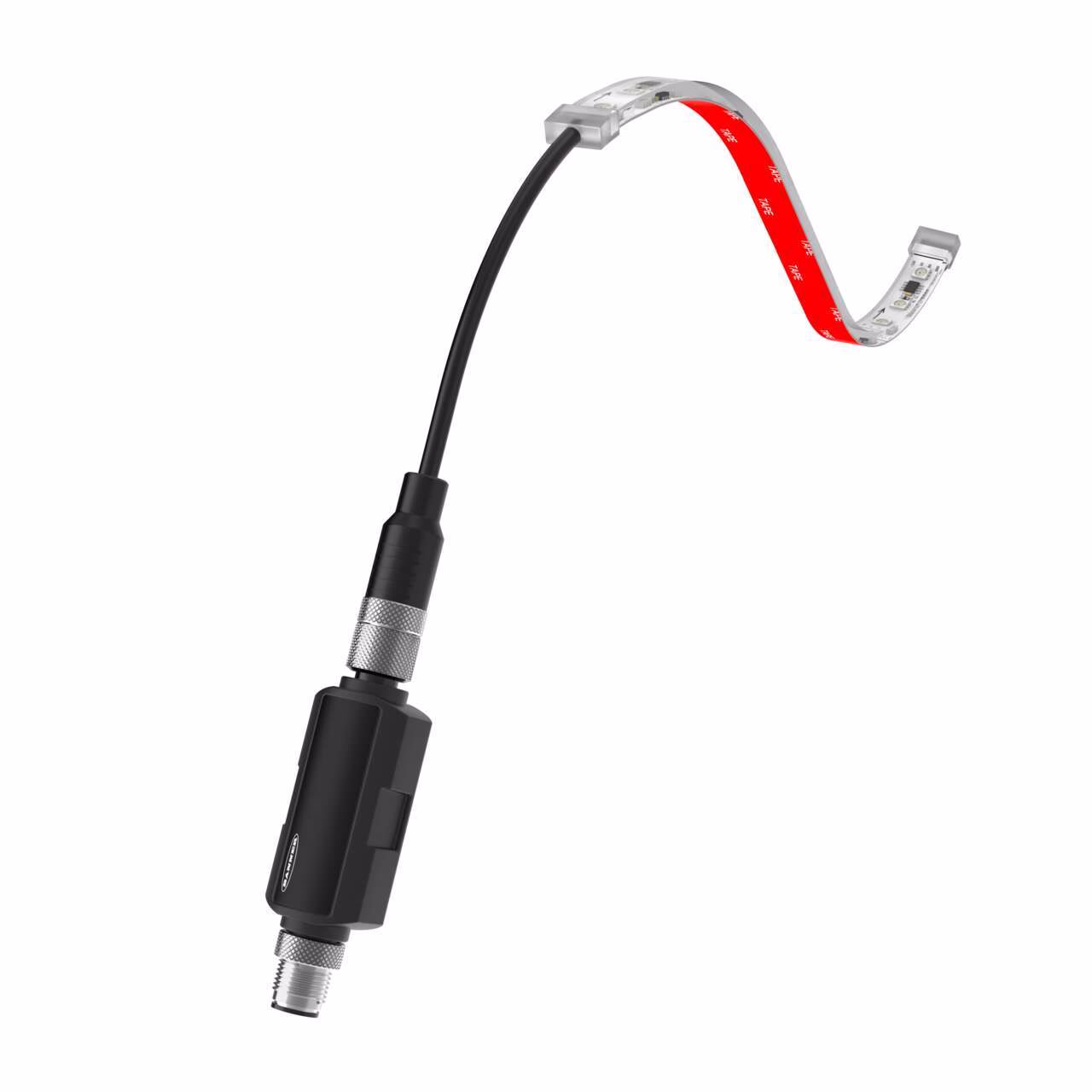

LC25 LED Controller – Banner – LC25C-WLF12-SQ
LC25 LED Controller; WLF12 Pro Controller
Voltage: 12-30 V dc; IP65, IP67, IP68
Input: Modbus; Output: WLF12
Female-Male 4-pin M12 QD
| Connector 2 Gender | Female |
|---|---|
| Connector B | Male |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Operating voltage | 18-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | WLF12 |
| Signal type | Modbus |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Controller |
| IO-Link Master | No |
| Form Factor | LC25 |
| Modbus Client | Yes |
| Input | PICK-IQ |
| Device Size (mm) | 25 x 85 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 4.0 |
| Current | <30 mA |
Description
LC25 LED Controller; WLF12 Pro Controller
Voltage: 12-30 V dc; IP65, IP67, IP68
Input: Modbus; Output: WLF12
Female-Male 4-pin M12 QD
