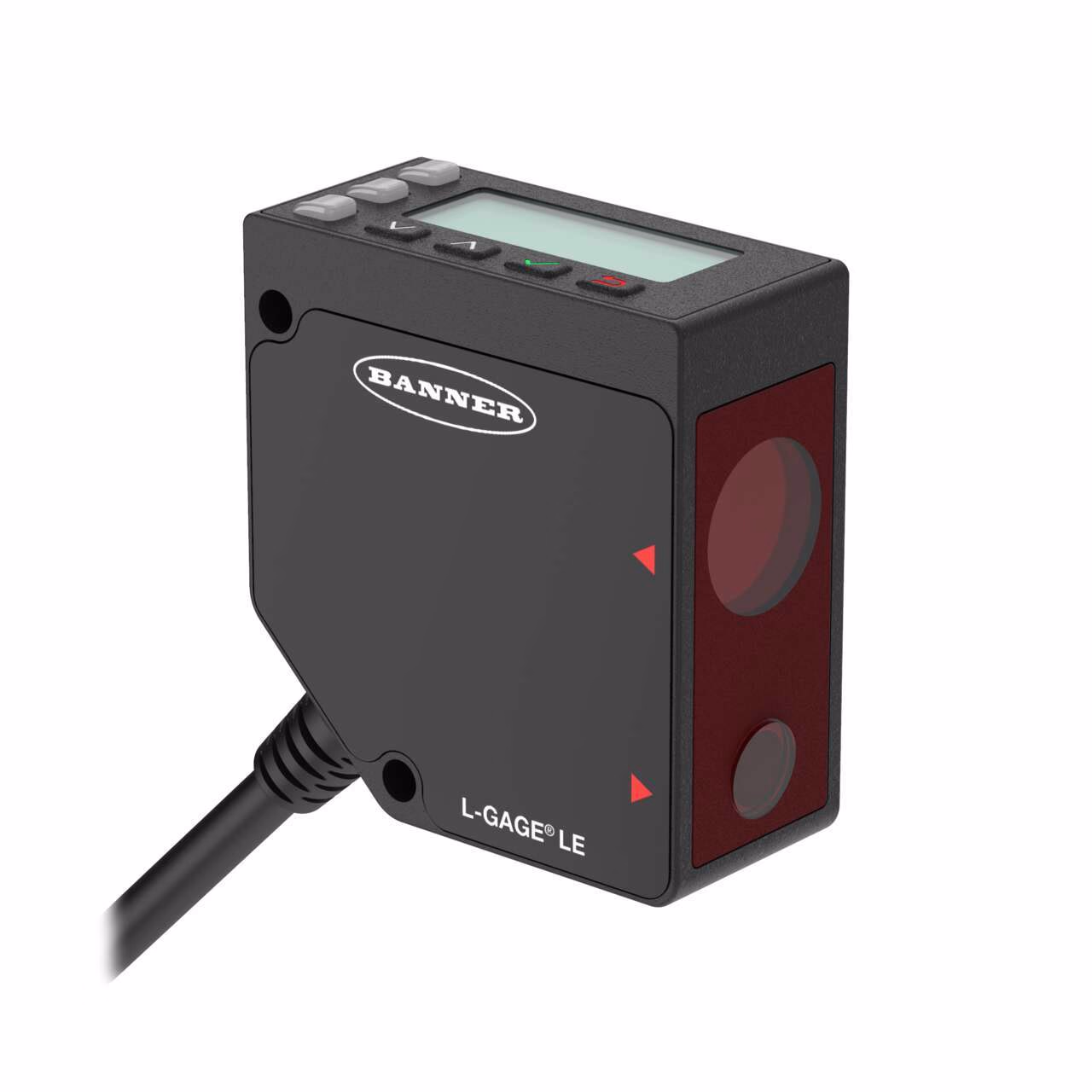

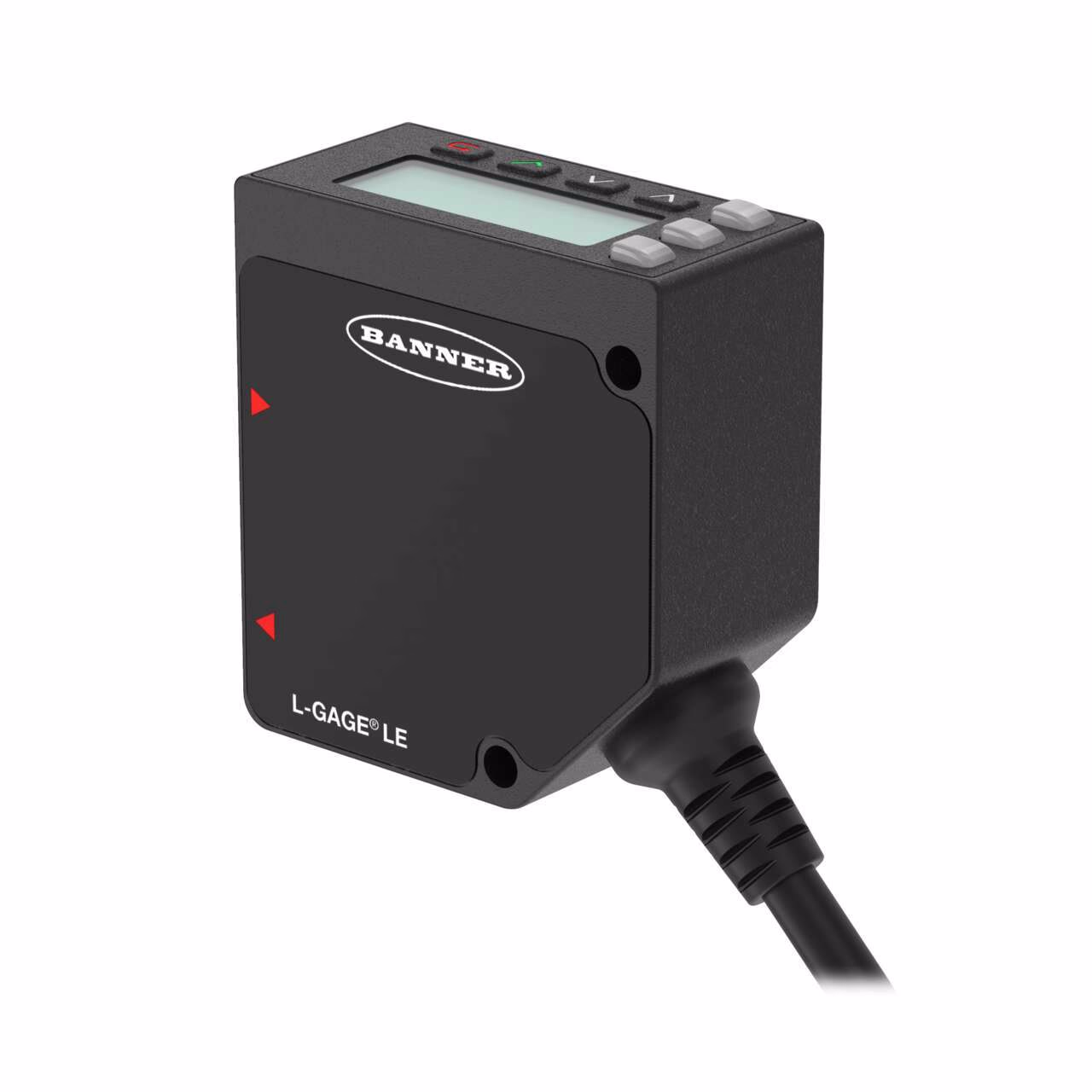

LE Series 1 m Range Laser Displacement Sensor – Banner – LE250IC1QP
Laser Displacement Sensor; Range: 100-400 mm
Input: 12-30 V dc; Output: Analog: 4-20 mA
Discrete: NPN/PNP Configurable; Class 1 Laser
150 mm (6 in) M12 Pigtail QD
| Analog Output Configuration | 4-20 mA |
|---|---|
| Connection | Pigtail QD |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 1 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 5000 |
| Min Operating Temperature (C) | -20.0 |
| Minimum Sensing Distance (mm) | 100.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Triangulation |
| Device type | Sensor |
| Feature | Health/Marginal Signal Output, Quick Disconnect, Remote Teach, Timing (Hold/Delay) |
| Housing Style | Rectangular |
| Input/Output | Analog & Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 12-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Zinc Alloy Die-Cast |
| RS-232 | No |
| Sensing Beam | Visible Red Laser |
| Slot width (mm) | 0.15 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 400.0 |
| Minimum Response Time (ms) | 2.0 |
Description
Laser Displacement Sensor; Range: 100-400 mm
Input: 12-30 V dc; Output: Analog: 4-20 mA
Discrete: NPN/PNP Configurable; Class 1 Laser
150 mm (6 in) M12 Pigtail QD
