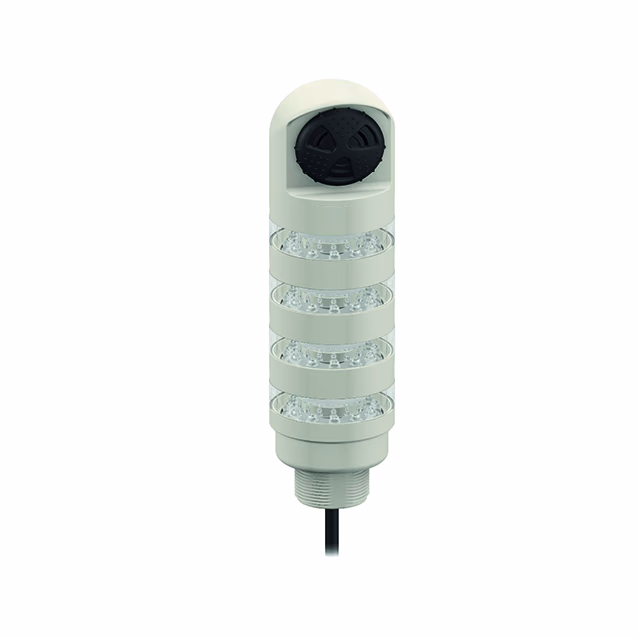

LED Signal Light TL50BLBG1Y2R3ALSQP
LED Signal Light
| Acoustic signal | Continuous tone |
|---|---|
| Ambient temperature max. (°C) | 50 |
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 0.15 |
| Cascadable | No |
| Connector type | M12 × 1 |
| Design | Smooth barrel |
| Dimensions | 50 mm x x 170.8 mm |
| Dimmable | No |
| Electrical output | Cable with connector |
| Function | Tower light |
| Housing material | Plastic |
| Housing quality | ABS |
| Input type | Bipolar (PNP/NPN) |
| Light type | Blue, flashing, Green, Red, rotating, Yellow |
| Number of colors/segments | 3 |
| Protection class | IP67 |
| Volume (dB) | 94 dB |
