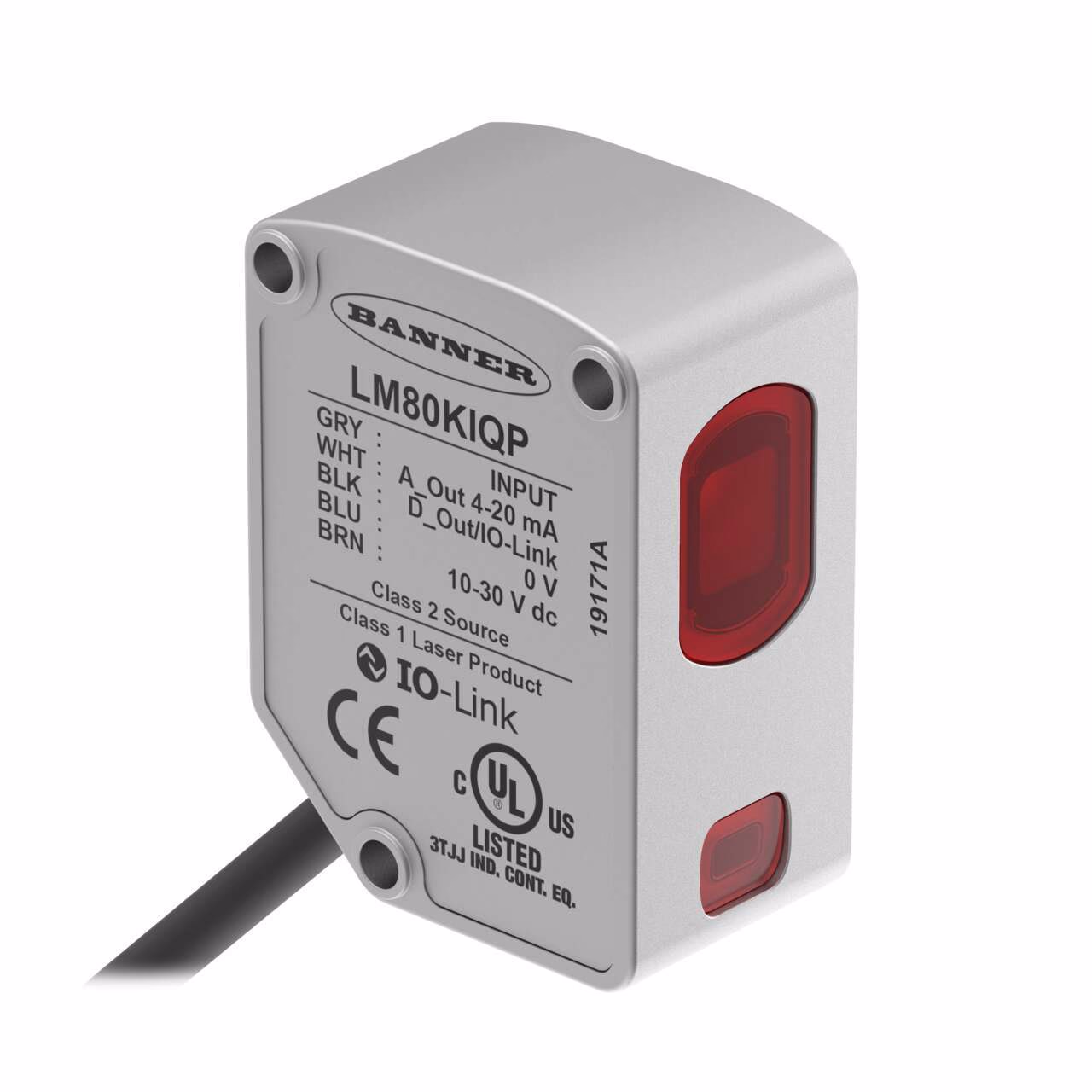

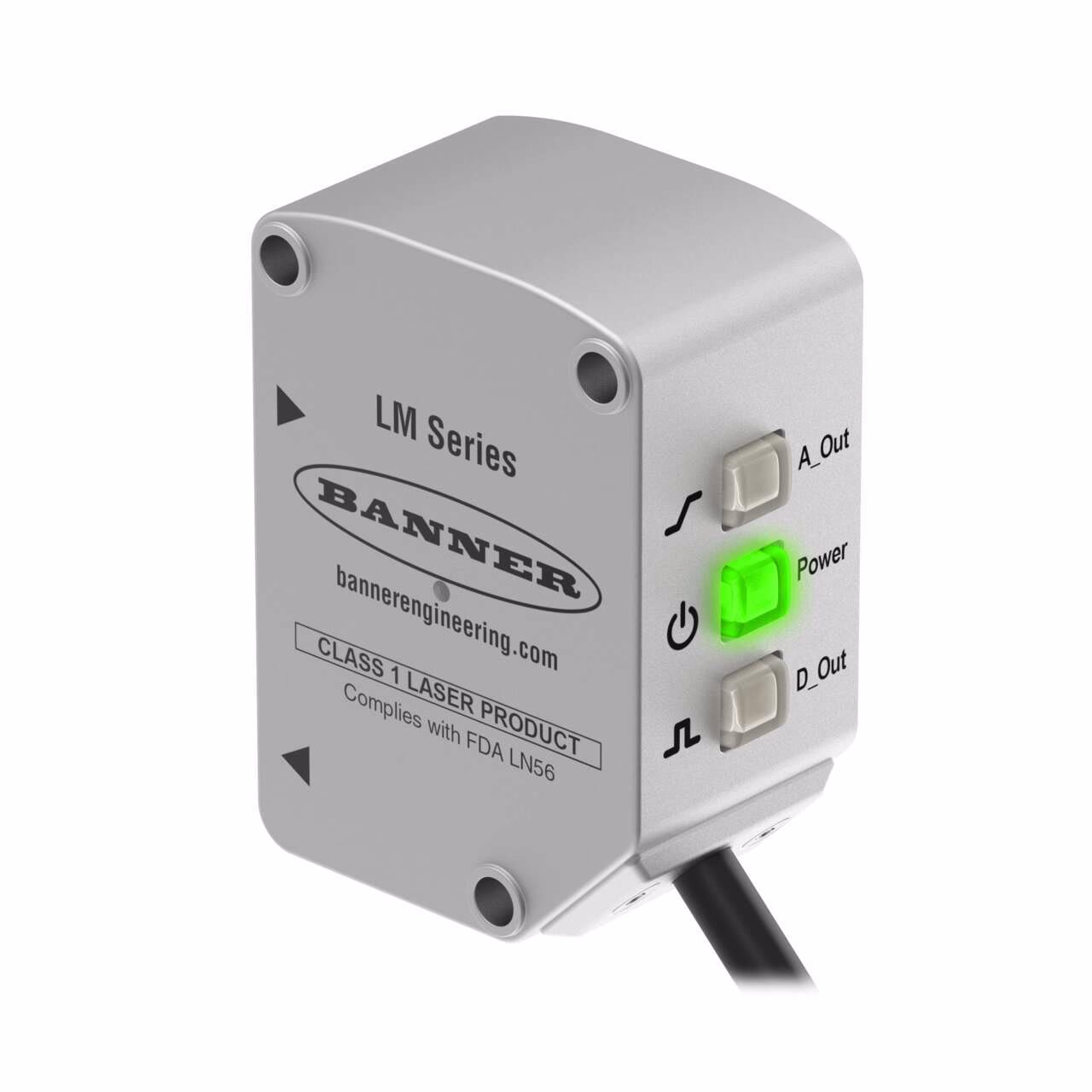

LM Series Precision Measurement Sensor – Banner – LM80KIQP
Laser Displacement Sensor
Range: 40-80 mm; Input: 10-30 V dc; Outputs: Analog: 4-20 mA
Discrete: Push/Pull, IO-Link
300 mm (1 ft) M12 Pigtail QD
| 1-wire Serial Interface | No |
|---|---|
| Analog Output Configuration | 4-20 mA |
| Connection | Pigtail QD |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 1 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 10000 |
| Min Operating Temperature (C) | -10.0 |
| Minimum Sensing Distance (mm) | 40.0 |
| PC Configurable | No |
| PFM Output | No |
| Profibus | No |
| RS-422 | No |
| SSI | No |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Triangulation |
| Device type | Sensor |
| EPLAN Original Sent Date | 12/08/2021 |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Clear Object Detection, Health/Marginal Signal Output, Quick Disconnect, Remote Teach, Timing (Hold/Delay) |
| Housing Style | Rectangular |
| Input/Output | Analog & Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Max. range (mm) | <= 100 mm |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Stainless Steel |
| Resolution | <= 1 mm |
| RS-232 | No |
| RS-485 | No |
| Sensing Beam | Visible Red Laser |
| Slot width (mm) | 0.3 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 80.0 |
Description
Laser Displacement Sensor
Range: 40-80 mm; Input: 10-30 V dc; Outputs: Analog: 4-20 mA
Discrete: Push/Pull, IO-Link
300 mm (1 ft) M12 Pigtail QD
