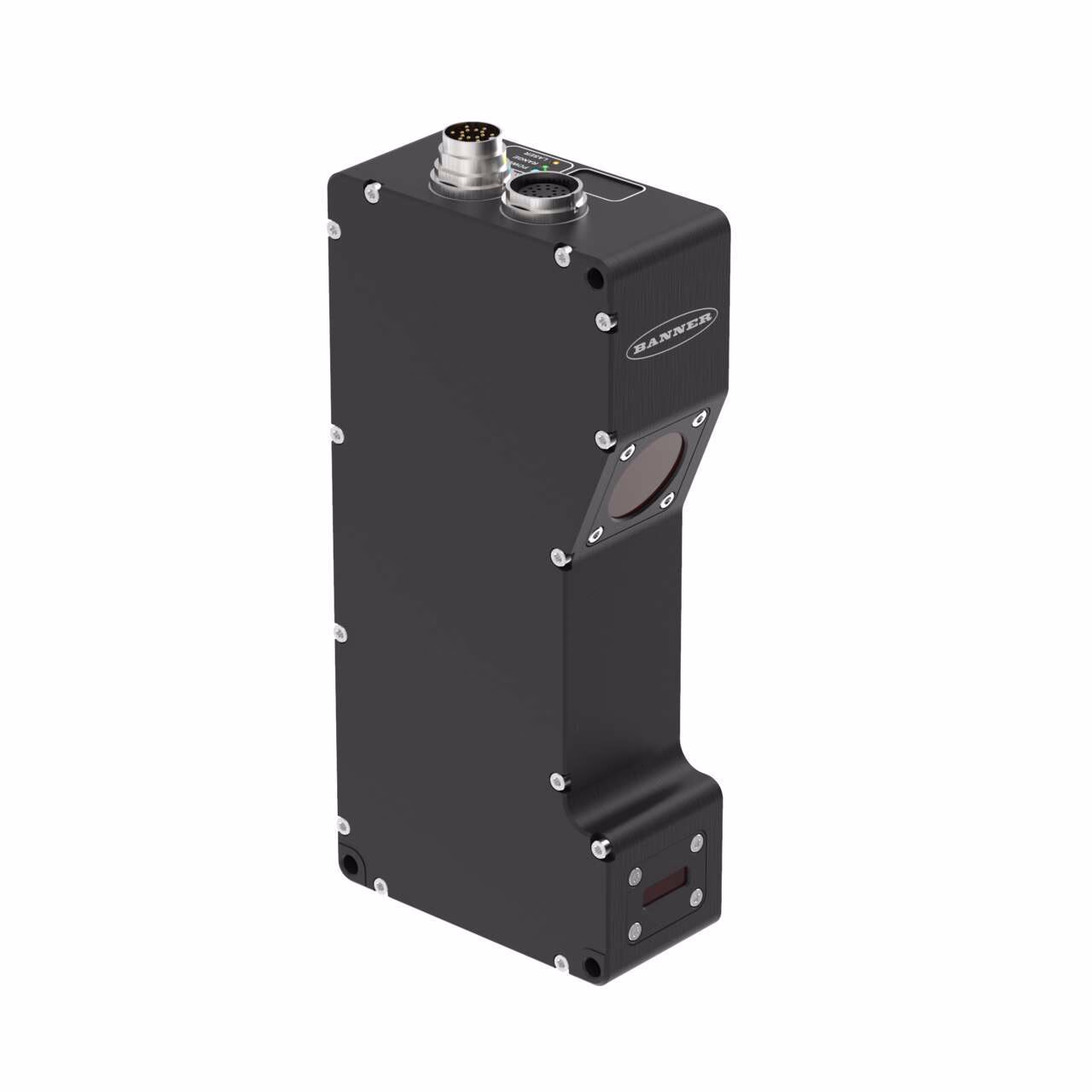

LPM Series – Banner – LPM302-393NIX485R3Q
LPM Series Laser Triangulation Sensor
Range: 183-393 mm; Resolution: 1940 Pts/Profile; Laser Class: 3R
Input: 24-48 V dc; Outputs: 2 Discrete, 1 Analog 4-20 mA, RS-485 Serial
Integral QD
| Analog Output Configuration | 4-20 mA |
|---|---|
| Connection | Integral QD |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 3R |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 183.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Software |
| Connection technology signal | Triangulation |
| Device type | Sensor |
| Feature | Quick Disconnect, Timing (Hold/Delay) |
| Housing Style | Rectangular |
| Input/Output | Analog & Discrete & Serial & Ethernet |
| Item Status | RELEASED |
| Network protocol | Yes |
| Number of pins | 19 |
| Operating voltage | 24-48 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| Receptacle housing material B | Aluminum |
| RS-232 | No |
| Sensing Beam | Visible Red Laser |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 393.0 |
| Minimum Response Time (ms) | 0.2 |
Description
LPM Series Laser Triangulation Sensor
Range: 183-393 mm; Resolution: 1940 Pts/Profile; Laser Class: 3R
Input: 24-48 V dc; Outputs: 2 Discrete, 1 Analog 4-20 mA, RS-485 Serial
Integral QD
