LS Safety Light Curtain Kits – Banner – SLLP23-280-B16

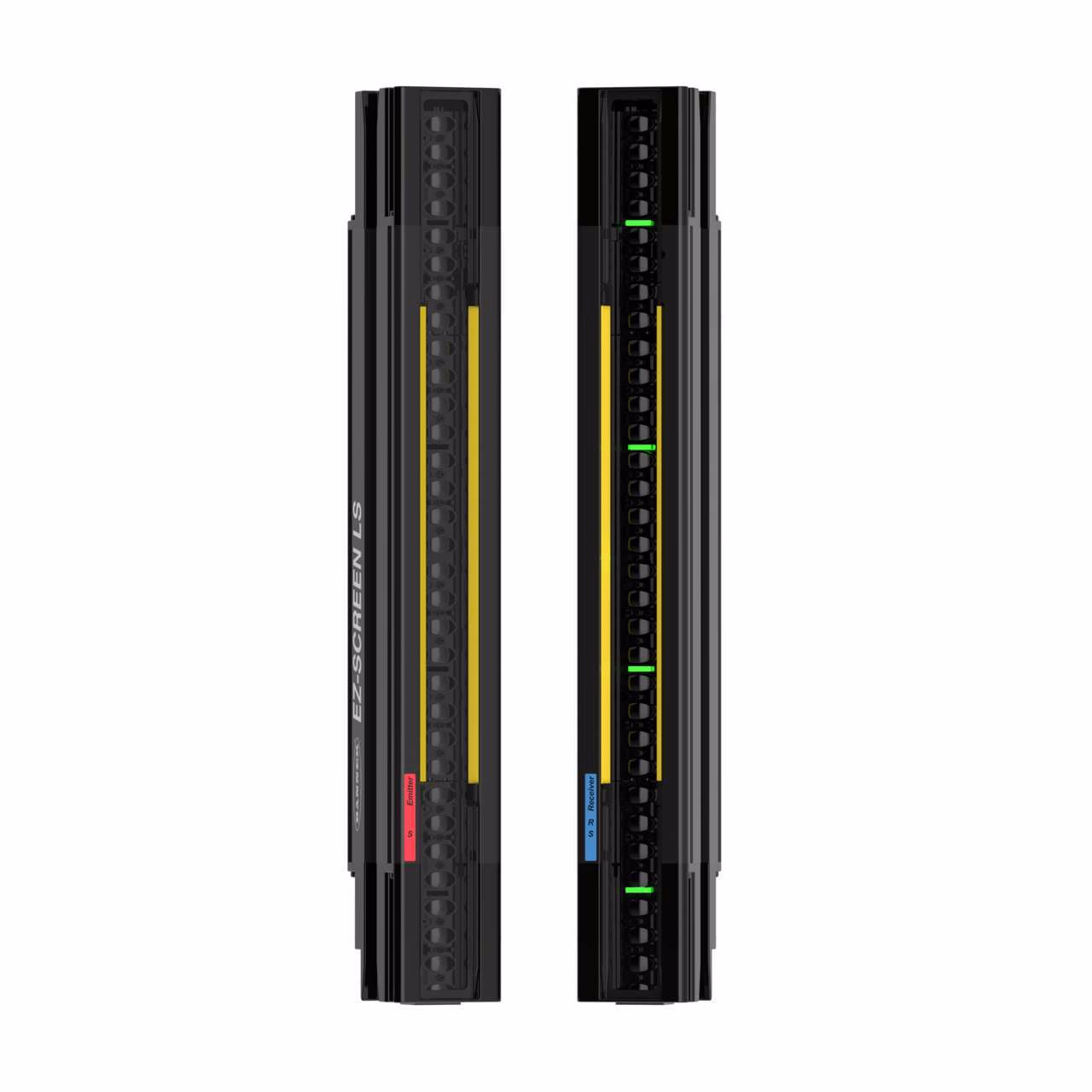

EZ-SCREEN LS, Pair
Resolution: 23 mm; Range: 12 m (40 ft)
Defined Area: 280 mm (11.0 in); Housing: Black
Connection: Removable Disconnect (RD)EZLSA-MBK-16
| Auxiliary Output | No |
|---|---|
| Max Operating Range (m) | >8 – <=20 |
| Resolution (mm) | 23 |
| Test Input | No |
| Connector type | Removable Disconnect |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | 1 Channel |
| Fault Output | Yes |
| Feature | End-to-End Sensing |
| Fixed Blanking | No |
| Functional safety (SIL/PL) | SIL3; CL3 |
| Housing Finish | Black Anodized |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Nominal voltage | 24 V dc at 0.5 A each |
| Number of channels | 0.1 – 12 |
| Operating Temperature | -20 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| PL Rating | Ple |
| Protection class shaft | IP65, IP67 |
| Receptacle housing material B | Aluminum |
| Recovery Time | 32 / 110 |
| Resolution | Hand Detection (23 mm, 25 mm, 30 mm) |
| Resolution incremental (ppr) | No |
| Safety Level | Type 4 |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 94 mA Typical |
| System Type | Emitter/Receiver Pair |
| Trip/Latch Output | Trip |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 285.0 |
| Defined Area Height Range (mm) | <=350 |
| Defined Area Height (mm) | 280.0 |
| Dimensions WxD (mm) | 36 x 45 |
Description
EZ-SCREEN LS, Pair
Resolution: 23 mm; Range: 12 m (40 ft)
Defined Area: 280 mm (11.0 in); Housing: Black
Connection: Removable Disconnect (RD)EZLSA-MBK-16
