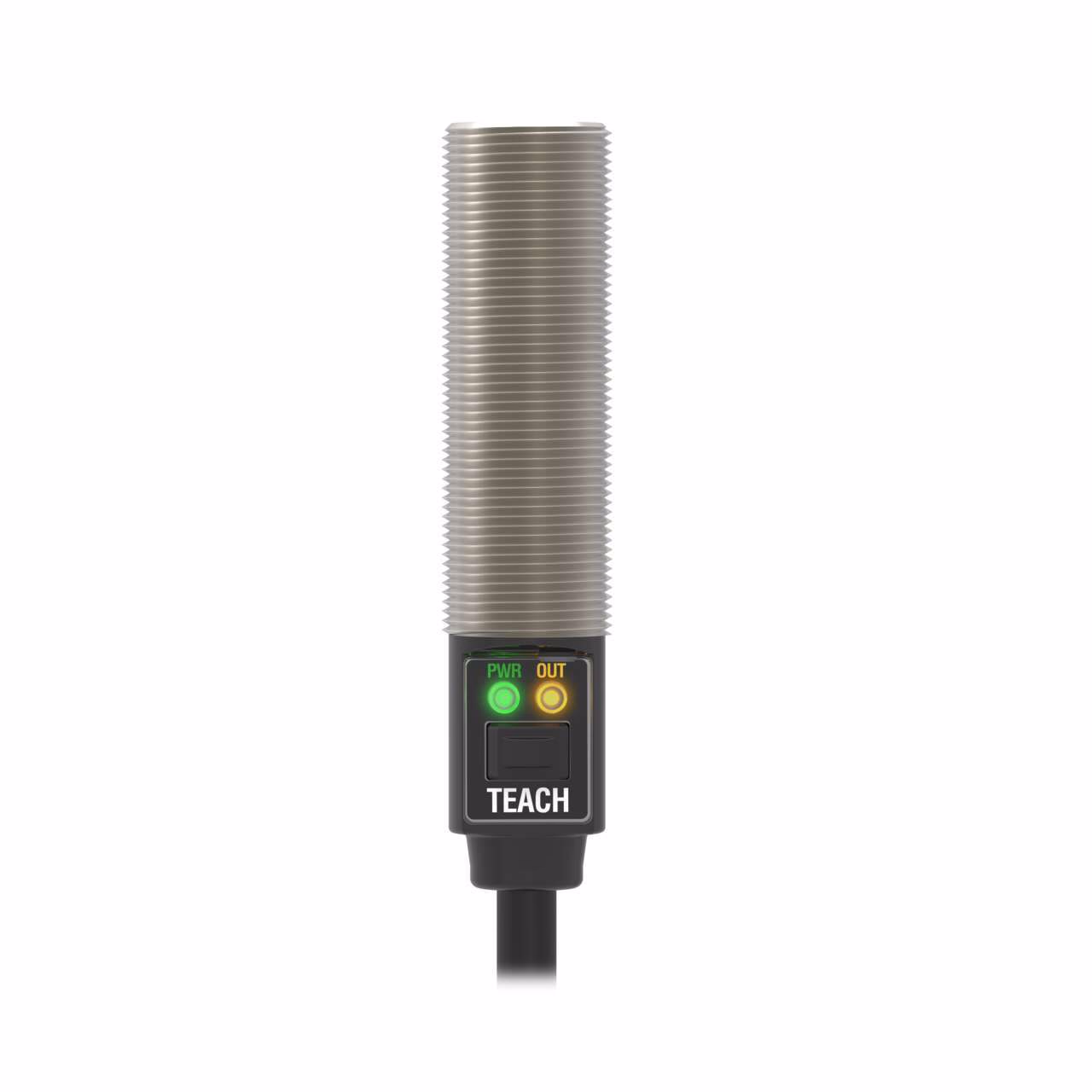

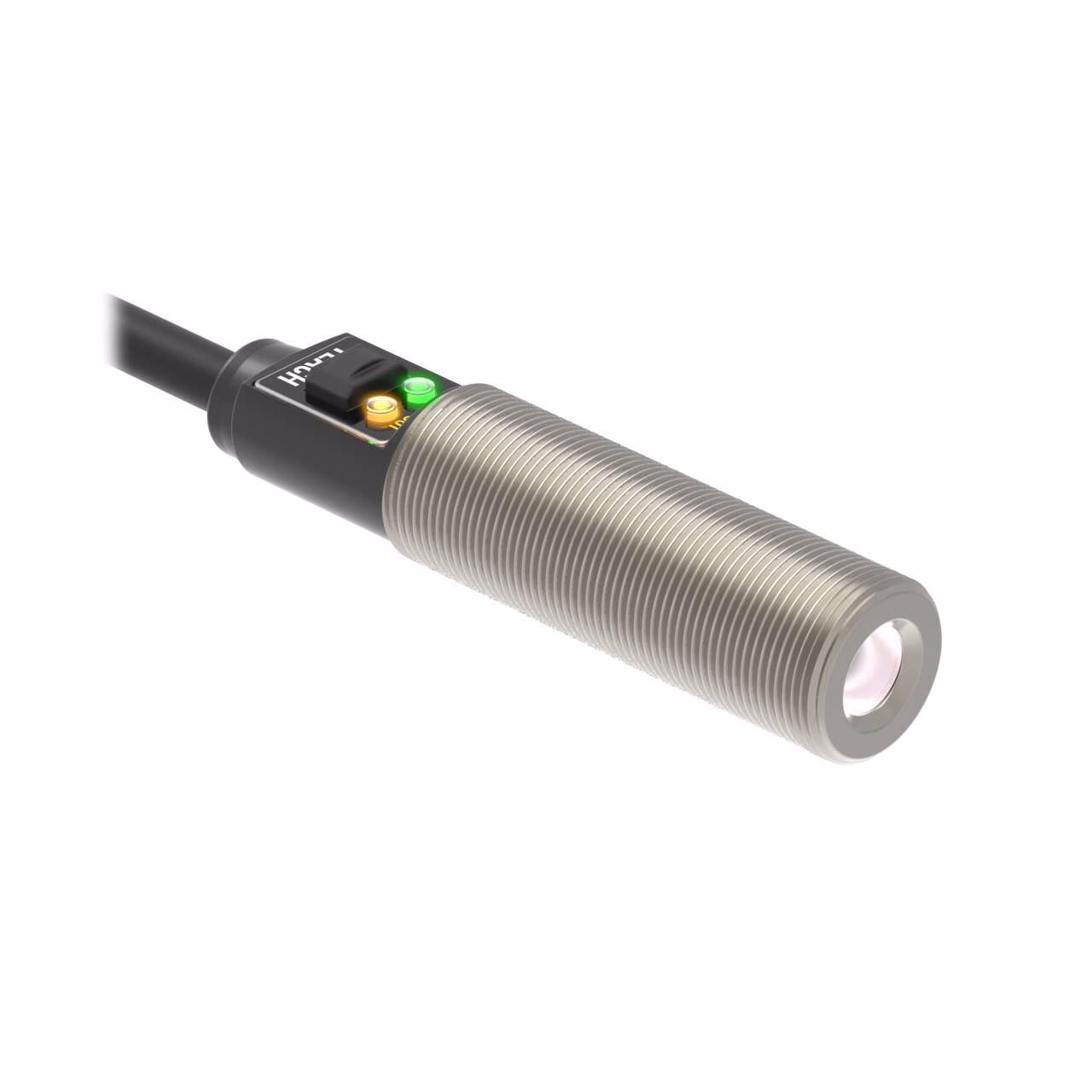

M18T Series Non-Contact Temperature Sensors – Banner – M18TIP8
M18T Series: Temperature Sensor
8: 1 Integrated Lens
Output: Analog 4-20 mA; PNP Alarm
2 m (6.5 ft) Cable
| Analog Output Configuration | 4-20 mA |
|---|---|
| Connection | Flying Leads |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -20.0 |
| PC Configurable | Yes |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Diffuse |
| Device type | Sensor |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Health/Marginal Signal Output, Quick Disconnect, Remote Teach |
| Housing Style | Barrel |
| Input/Output | Analog |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Stainless Steel |
| RS-232 | No |
| Screw-in thread | M18 |
| Slot width (mm) | 2 |
| NEMA / UL Type Rating | NEMA 4X |
| Minimum Response Time (ms) | 25.0 |
Description
M18T Series: Temperature Sensor
8: 1 Integrated Lens
Output: Analog 4-20 mA; PNP Alarm
2 m (6.5 ft) Cable
