Magnetic Field Sensor BIM-INT-Y1X
Magnetic Field Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Blue |
| Cable length (m) | 2 |
| Cylindrical design | Dovetail cylinder, external groove, Tie-rod cylinder |
| Design | Rectangular |

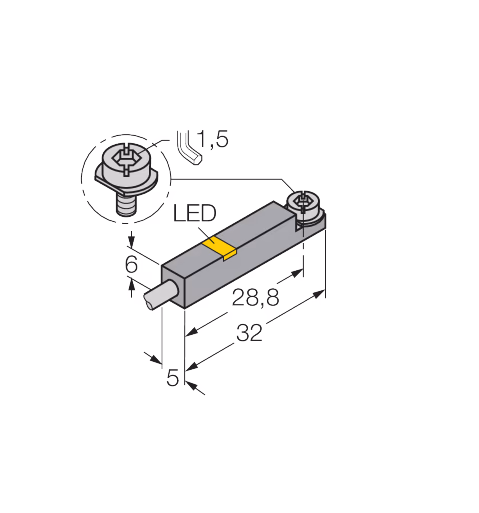

| Dimensions | 32 mm x 5 mm x 6 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | PP |
| Operating voltage | DC |
| Output function | NAMUR |
| Protection class | IP67 |
| Quality active face | PP |
| Switching frequency (kHz) | 1 |
