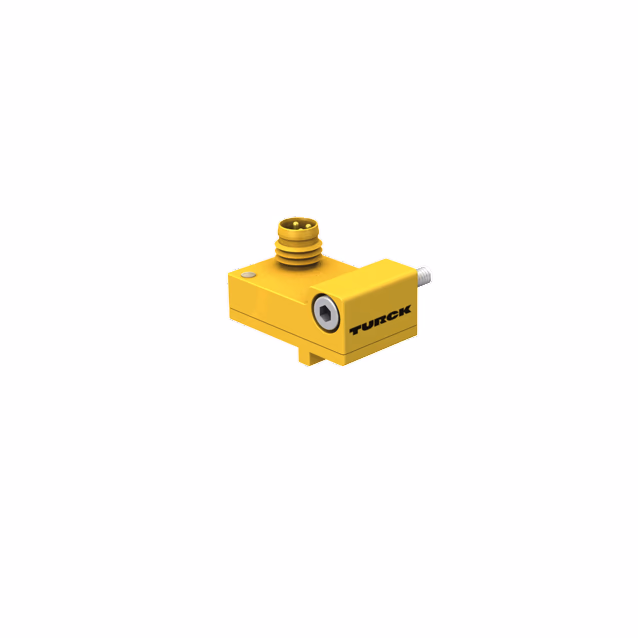

Magnetic Field Sensor BIM-NST-Y1X
Magnetic Field Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Blue |
| Cable length (m) | 2 |
| Cylindrical design | Dovetail cylinder, grooved, Profile cylinder, T-groove cylinder |
| Design | Rectangular |
| Dimensions | 28 mm x 17 mm x 14 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | PA12-GF30 |
| Operating voltage | DC |
| Output function | NAMUR |
| Protection class | IP67 |
| Quality active face | PA12-GF30 |
| Switching frequency (kHz) | 1 |
