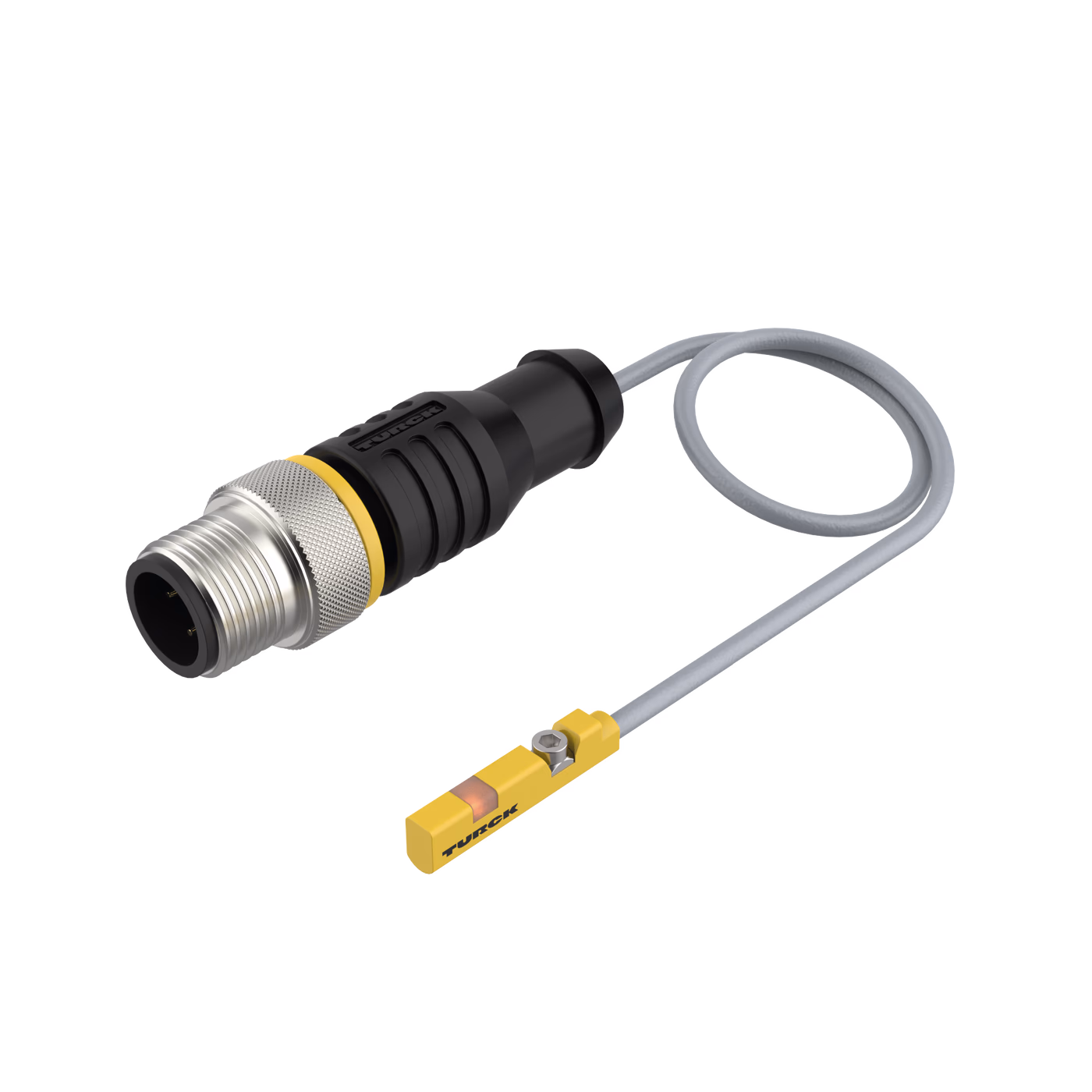

Magnetic Field Sensor BIM-UNR-AN6X-0.3-RS4
Magnetic Field Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Gray |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 18 mm x 2.9 mm x 4.6 mm |
| Electrical output | Cable with connector |
| Housing material | Plastic |
| Housing quality | PP |
| Operating voltage | DC |
| Output function | NPN |
| Protection class | IP67 |
| Quality active face | PP |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.02 |
| Cylindrical design | C-groove cylinder |
