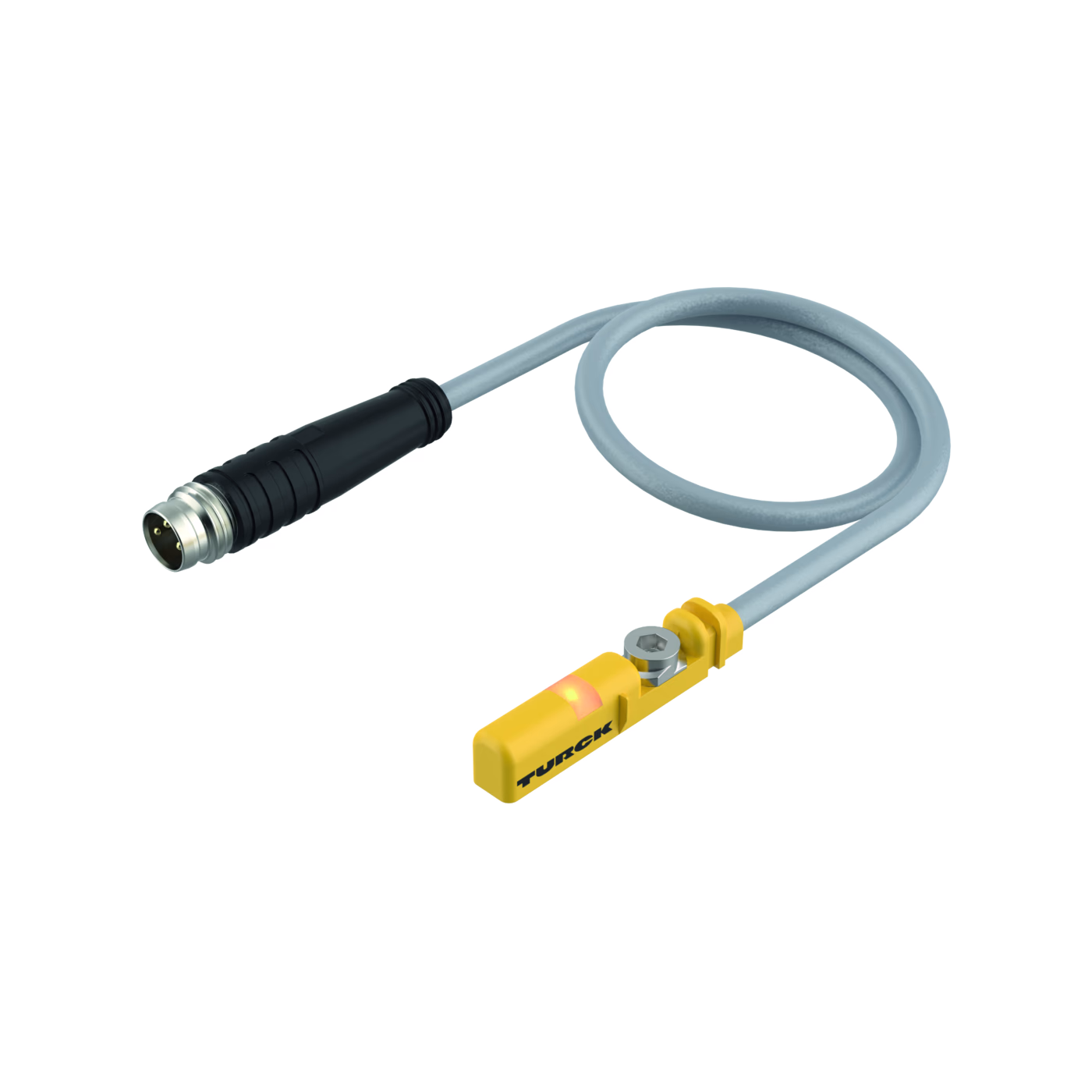

Magnetic Field Sensor BIM-UNT-AP6X-0.3-PSG3S/3GD
Magnetic Field Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Gray |
| Cable length (m) | 0.3 |
| Connector type | M8 x 1 |
| Design | Rectangular |
| Dimensions | 28 mm x 5 mm x 6 mm |
| Electrical output | Cable with connector |
| Housing material | Plastic |
| Housing quality | PP |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PP |
| Switching element function | NO contact |
| Switching frequency (kHz) | 1 |
| Cylindrical design | Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder |
