Managed Ethernet Switch TBEN-L4-SE-M2
Managed Ethernet Switch
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Connection technology Ethernet | 2 × M12, 4-pin, 8 × M12, 8-pin, D-coded, X-coded |
| Device type | Ethernet switch |

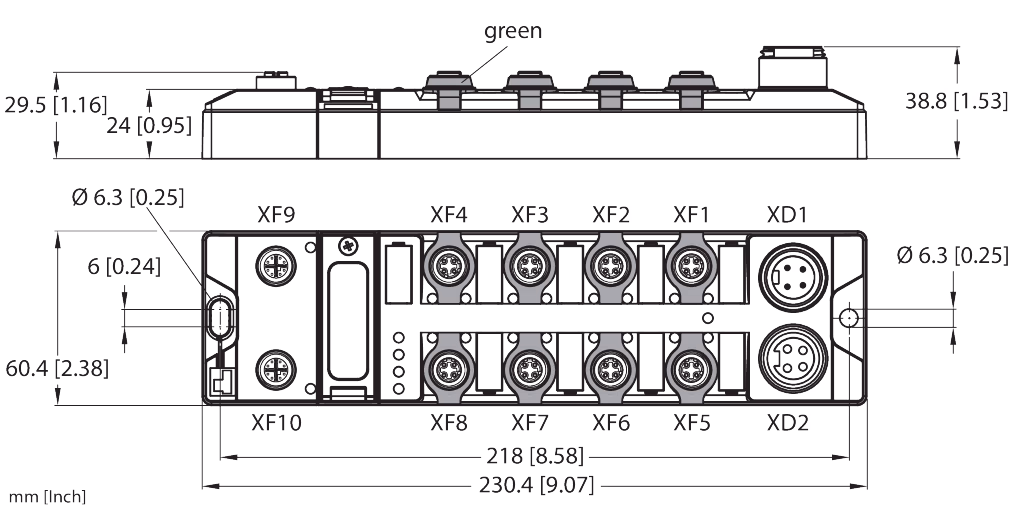

| Dimensions | 230.4 mm x 60.4 mm x 38.8 mm |
| Function | Managed |
| Installation area | zone 2, zone 22 |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Number of Ethernet ports | 10 ports |
| Protection class | IP65 |
| Transmission rate Ethernet | 10/100/1000 Mbps |
| Voltage (V) | 4-pin, 7/8″ |
