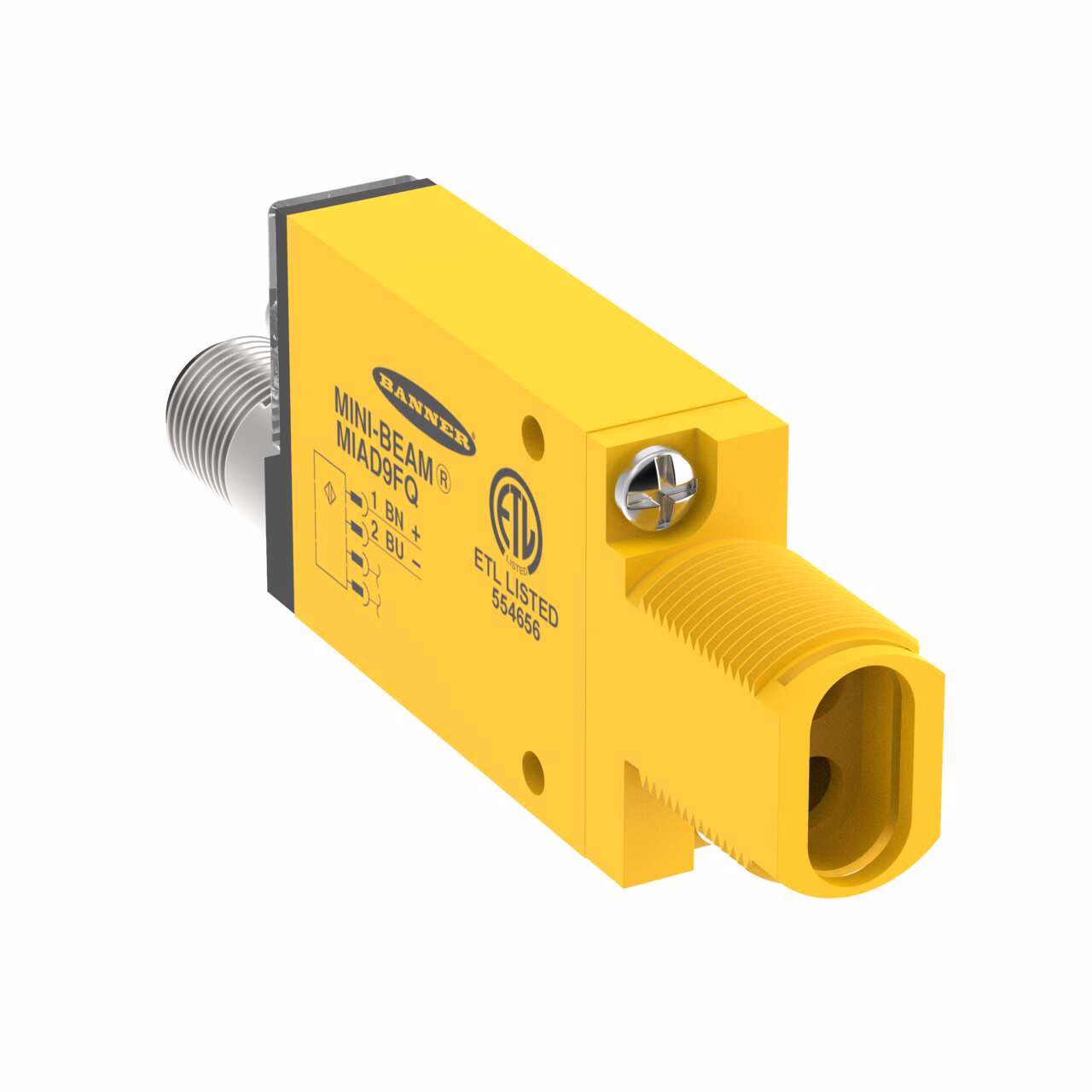

MINI-BEAM Fiber Optic Amplifier – Banner – MIAD9FQ
MINI-BEAM NAMUR: Glass Fiber Optic
Range: Depends on Fiber; Input: 5-15 V dc
Output: NAMUR
M12 Integral QD
| Accepts Fiber Termination Type | Glass Fiber Termination |
|---|---|
| Color LED - Amplifiers | Infrared |
| Connection | Integral QD |
| Feature: Audible | No |
| Fiber Type | Glass Only |
| Indicator Display Type | Indicator LEDs |
| Max Op. Temperature [?C] | 70 |
| Min Op. Temperature [?C] | -40 |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 5-15 V dc |
| Adjustments | Potentiometer |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Hazardous Area, Quick Disconnect |
| Housing material | Thermoplastic |
| Housing Style | Rectangular w/M18 Mount |
| Input/Output | Discrete |
| Intrinsically Safe | Yes |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 5 |
| Setting option | Constant Current |
Description
MINI-BEAM NAMUR: Glass Fiber Optic
Range: Depends on Fiber; Input: 5-15 V dc
Output: NAMUR
M12 Integral QD
