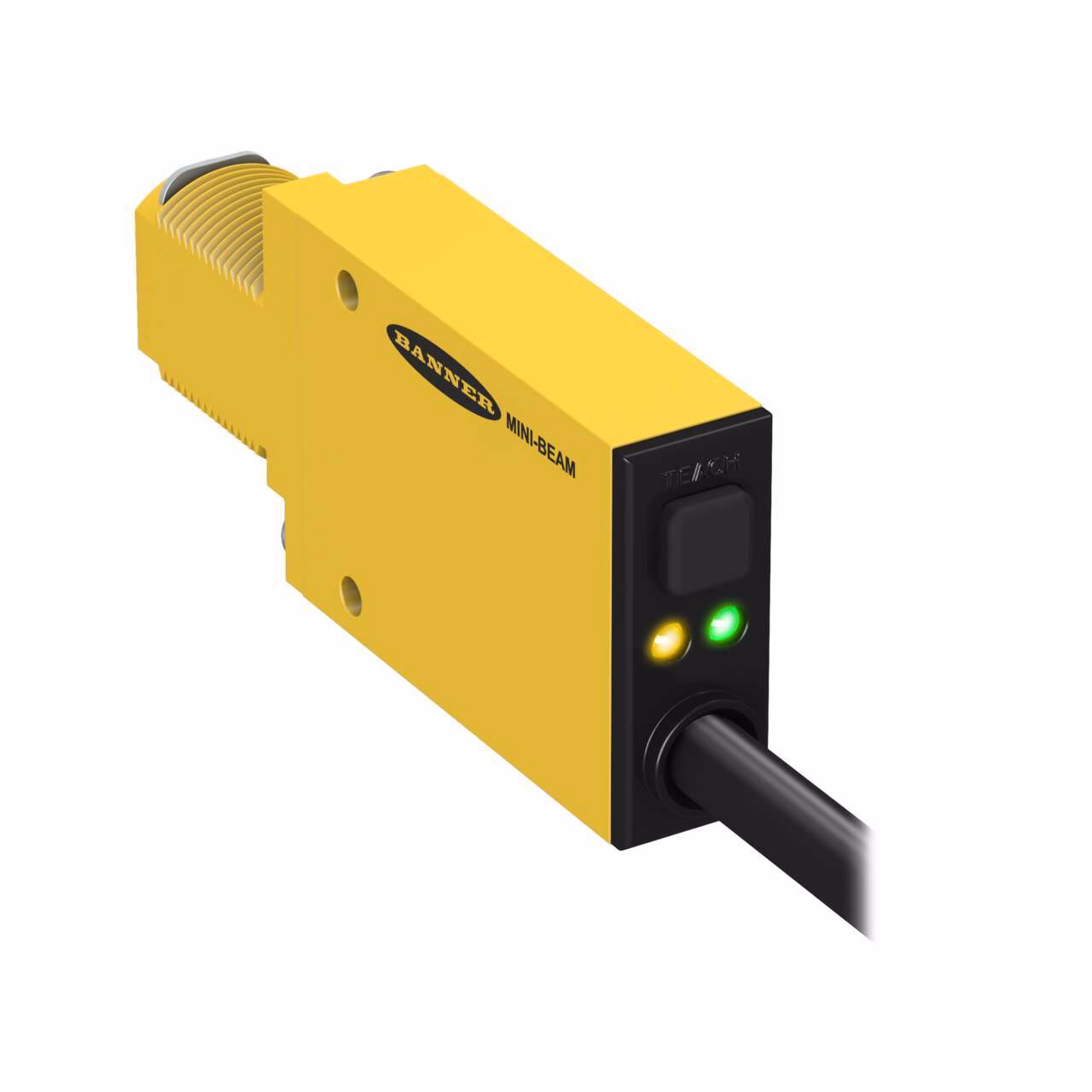

MINI-BEAM Fiber Optic Amplifier – Banner – SME312FQDP
SME312FQDP 6 in MINIBEAM EXPERT IR GLASS FIBER PIGTAIL QD
| Accepts Fiber Termination Type | Glass Fiber Termination |
|---|---|
| Color LED - Amplifiers | Infrared |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Fiber Type | Glass Only |
| Indicator Display Type | Indicator LEDs |
| Max Op. Temperature [C] | 70 |
| Min Op. Temperature [?C] | -20 |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Teach Button |
| Feature | Quick Disconnect |
| Housing material | Thermoplastic |
| Housing Style | Rectangular w/M18 Mount |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 1000 |
| Repeatability (µs) | 100 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 0.5 |
| Setting option | Bipolar (NPN & PNP) |
| Special feature | Remote Teach |
Description
SME312FQDP 6 in MINIBEAM EXPERT IR GLASS FIBER PIGTAIL QD
