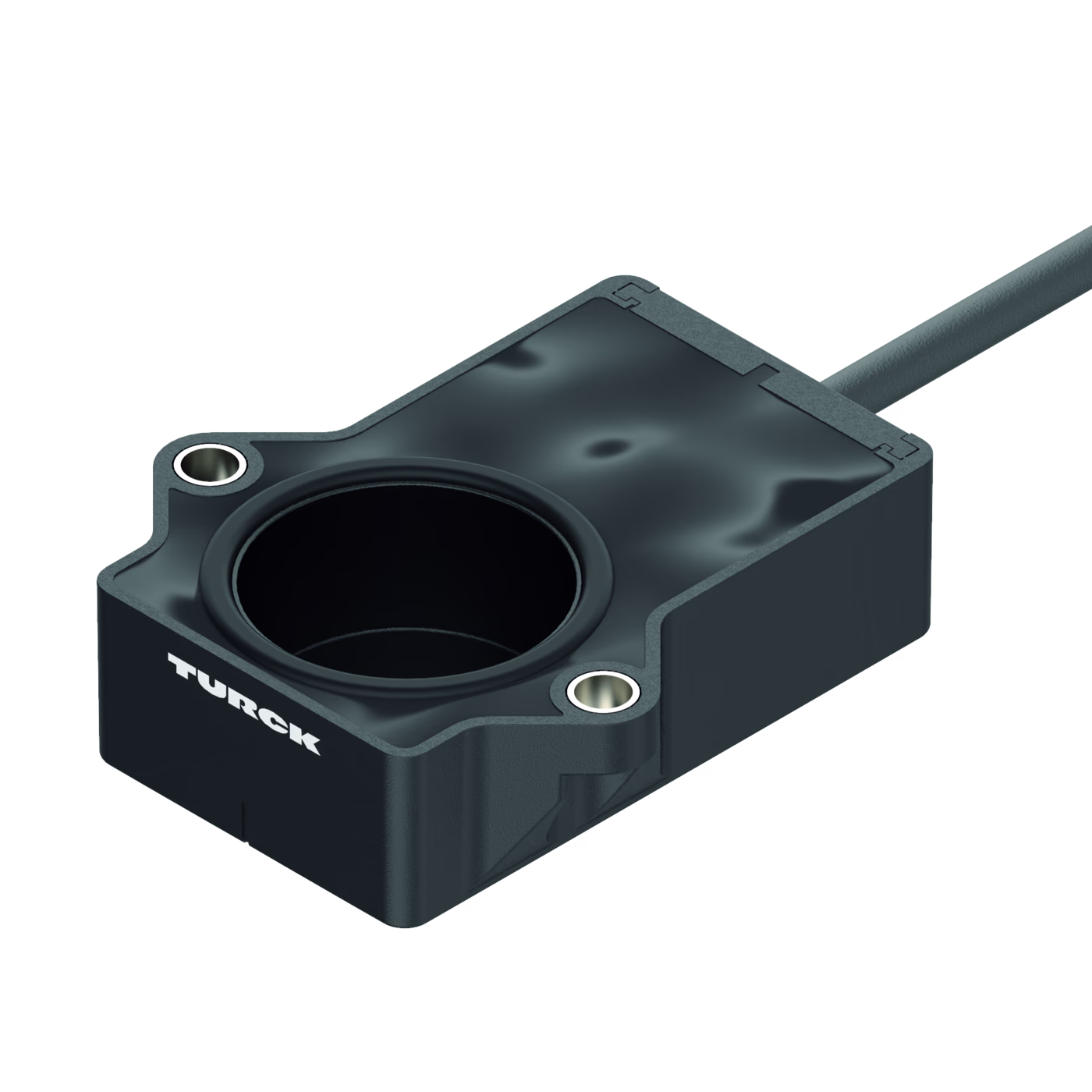

Miniature Encoder RI90P1-QR20-LU4X2
Miniature Encoder
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 2 |
| Design | Rectangular |
| Dimensions | 71.6 mm x 62.6 mm x 20 mm |
| Electrical output | Cable |
| Encoder line | Premium-Line |
| Flange type | Flange without mounting element |
| Housing material | Plastic |
| Housing quality | Ultem |
| Measuring principle | Inductive |
| Measuring range | -45…45° |
| Operating voltage | DC |
| Output function | Analog output |
| Output type | Absolute singleturn |
| Protection class | IP68 |
| Resolution | 0.09° |
| Shaft diameter D (mm) | 6 mm |
| Shaft Type | Blind hole shaft |
| Technology | Contactless |
