Multibarrier, 4-Channel MBD40-T0415/EX/000
Multibarrier, 4-Channel
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Application | Data |
| Approvals | ATEX |
| Connection technology signal | Cable gland |
| Device type | Multibarrier |

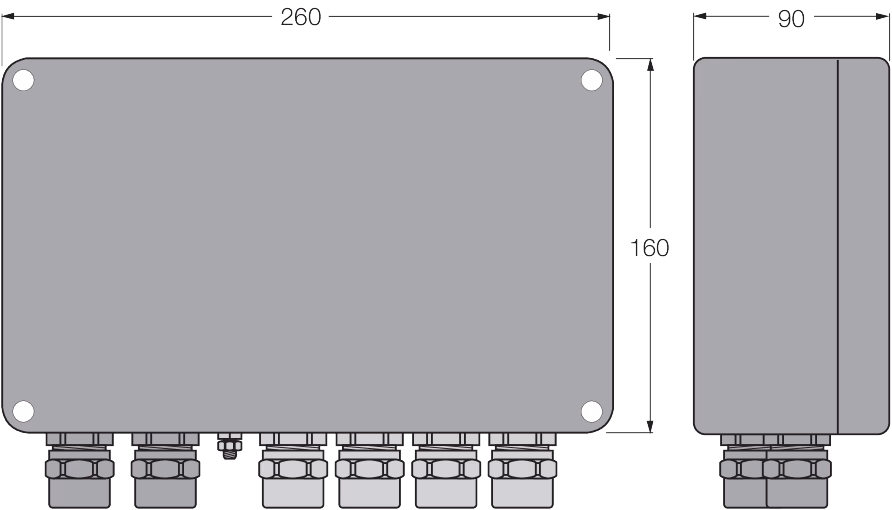

| Dimensions | 160 mm x 260 mm x 90 mm |
| Electrical output | 4 x 3-pin removable terminal blocks, Cable gland, reverse polarity protected, screw terminal |
| Housing material | Powder-coated die-cast aluminium |
| Installation area | zone 1 |
| Network protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Number of channels | 4 |
| Protection class | IP66 |
