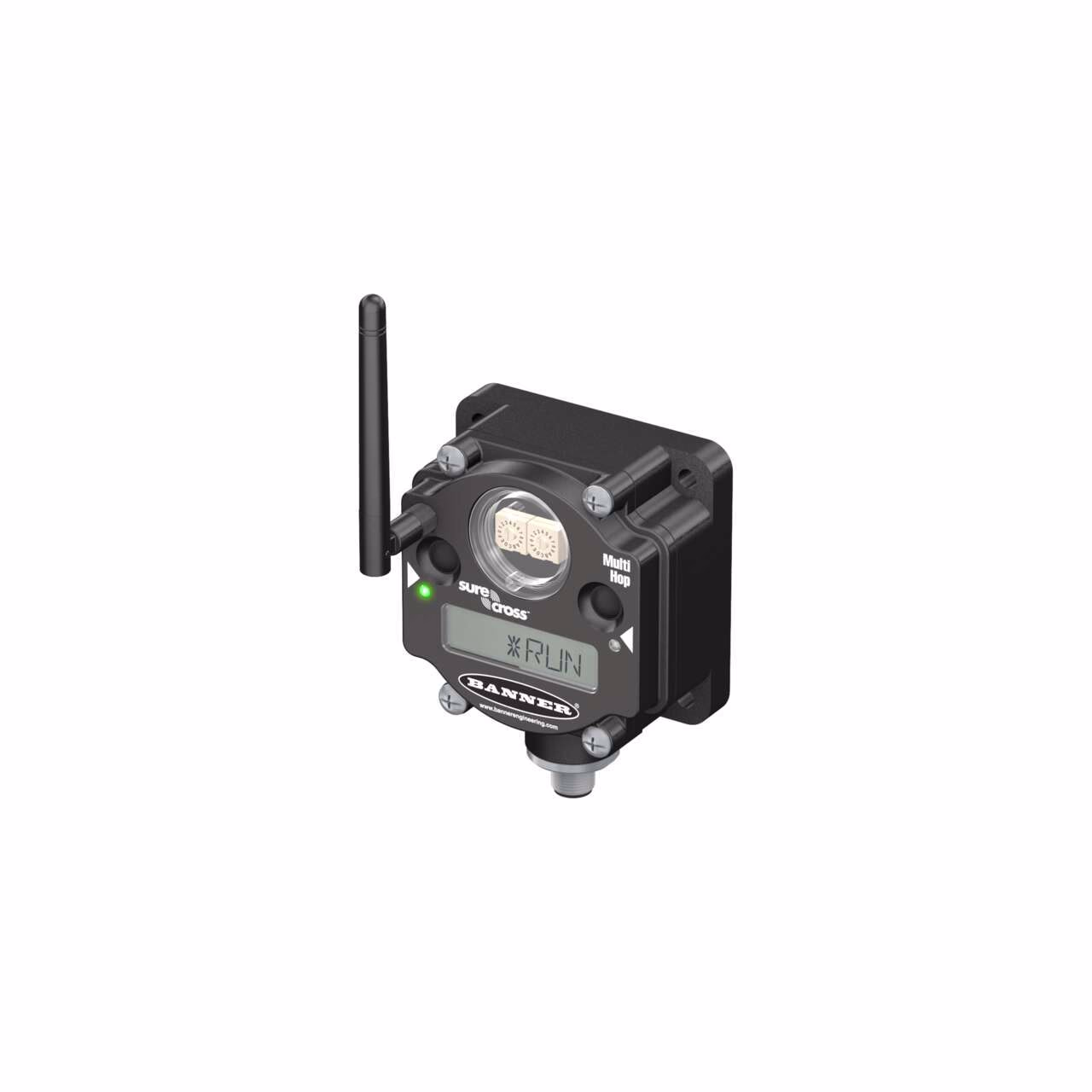

MultiHop Modbus I/O Data Radios – Banner – DX80DR2M-H
MultiHop 2.4 GHz 65 mW IP67
FlexPower; External Antenna; RS-485/RS-232
No IO
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| LCD Display | Yes |
| Max Operating Temperature (C) | 80 |
| Max Temp Operating Conditions (C) | 80 |
| Min Operating Temperature (C) | -20 |
| Min Temp Operating Conditions (C) | -20 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | No |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Brazil, Canada, China, Korea, Singapore |
| Device type | Multihop Data Radio |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Housing Style | Enclosed Terminals |
| Input/Output | Serial |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc or 3.6-5.5 V dc low power option |
| Power Good Output | Flex Power |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | Yes |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 6 |
Description
MultiHop 2.4 GHz 65 mW IP67
FlexPower; External Antenna; RS-485/RS-232
No IO
