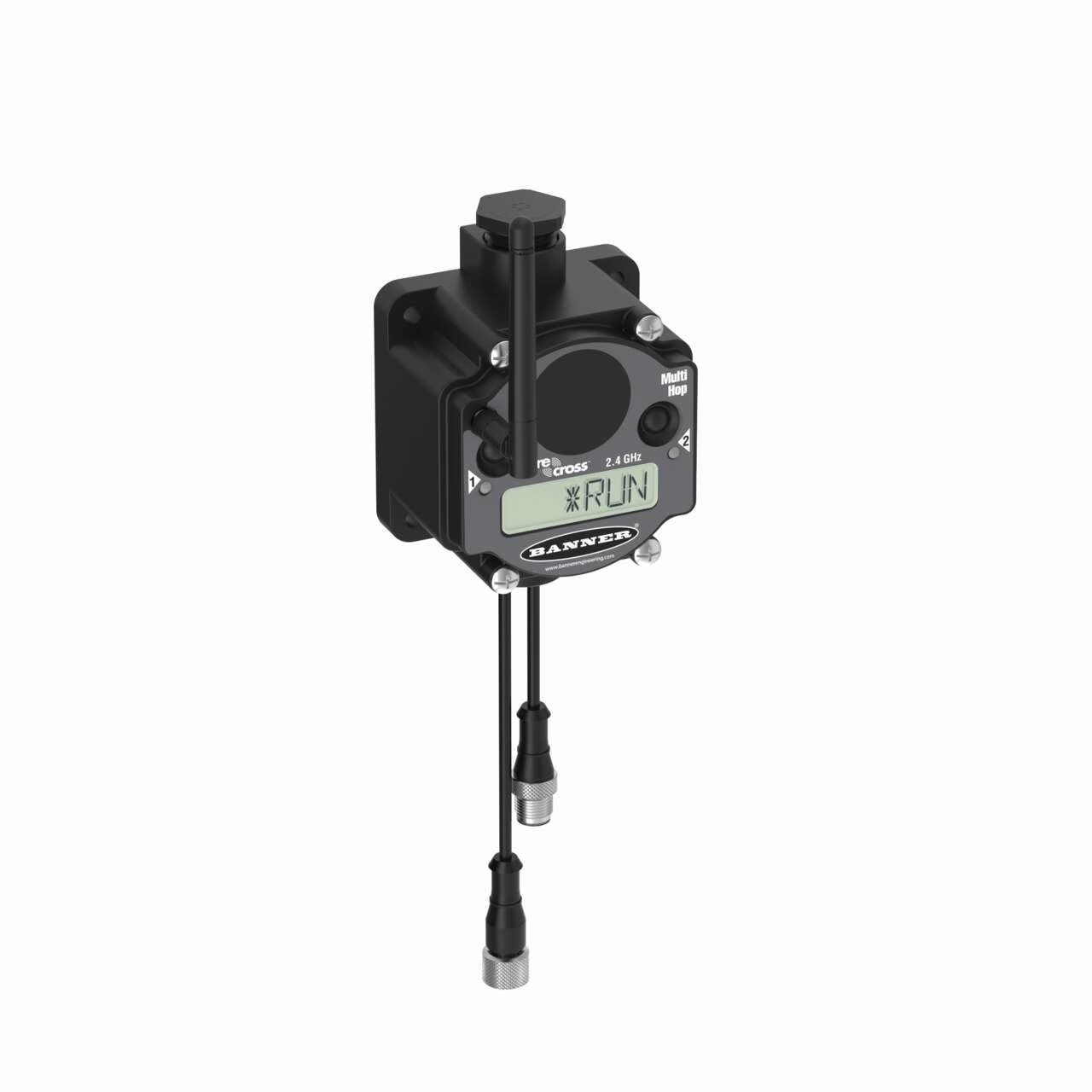

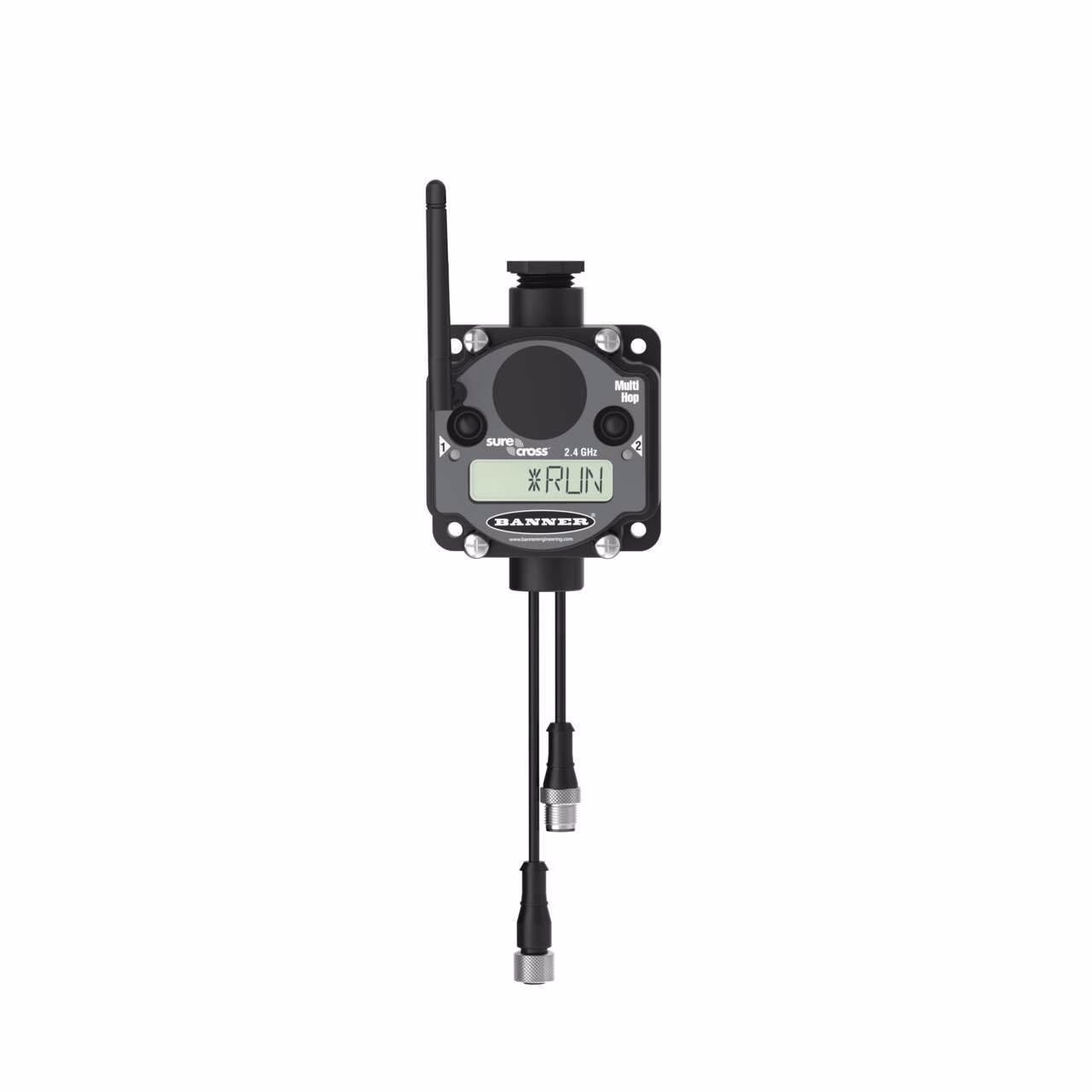

MultiHop Modbus I/O Data Radios – Banner – DX80DR2M-H10 NB
MultiHop 2.4 GHz 65 mW IP67
Flex Power
External Antenna
1-wire Serial Interface with Extended Addressing and Platform Capabilities
Battery Not Included
| 1-wire Serial Interface | Yes |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 80.0 |
| Min Temp Operating Conditions (C) | -20.0 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | No |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Brazil, Canada, Korea, Singapore |
| Connection mode | 1-Wire Serial Interface |
| Device type | Multihop Data Radio |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Serial |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 10-30 V dc or D Cell Lithium Battery |
| Power Good Output | Flex Power |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Relative Humidity Input, Tank Level, Temperature Input, Ultrasonic, Vibration Sensor Input |
Description
MultiHop 2.4 GHz 65 mW IP67
Flex Power
External Antenna
1-wire Serial Interface with Extended Addressing and Platform Capabilities
Battery Not Included
