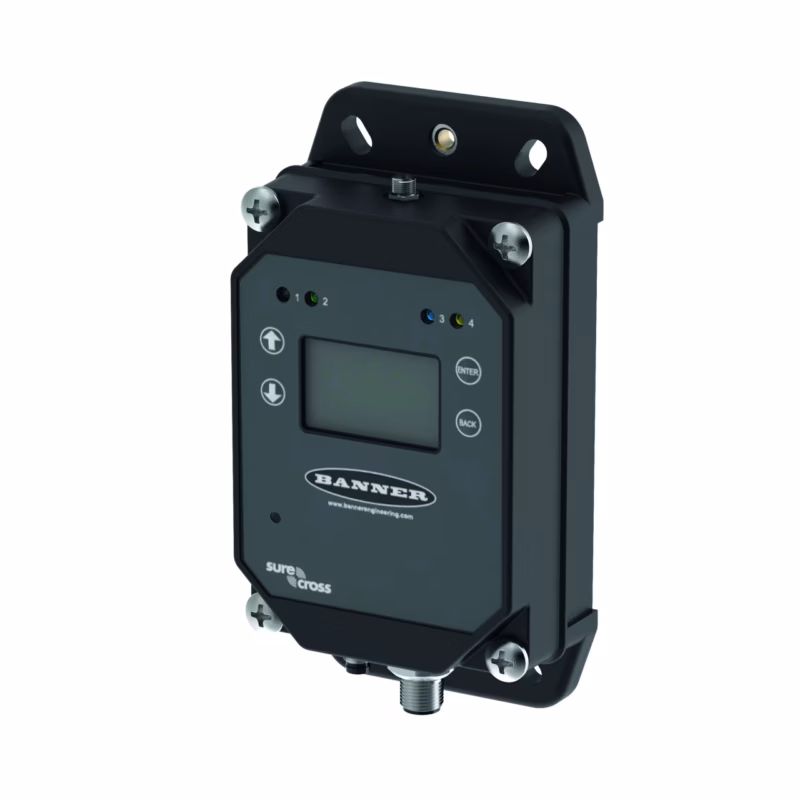

Network Controller DXM1200-B1R4
Network Controller
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Communication protocol | EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS485 |
| Connector type | M12 × 1 |
| Design | Rectangular |

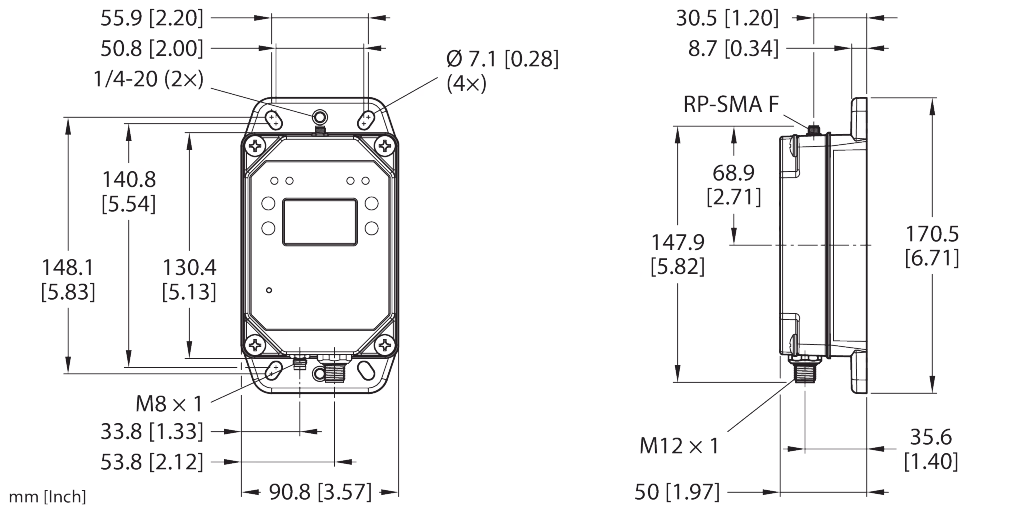

| Dimensions | 50.9 mm x 90.8 mm x 170.5 mm |
| Electrical output | Connector |
| Function | Tree topology |
| Housing material | Plastic |
| Housing quality | PC |
| Max. range (mm) | 3200000 |
| Operating voltage | DC |
| Output function | Analog output, PNP/NPN |
| Protection class | IP67 |
| Switching element function | Programmable |
| Antenna connection | RP-SMA female connector |
| Frequency band | 2.4-GHz ISM band |
| Frequency range | 2.402 – 2.483 GHz |
| Runs with battery | No |
