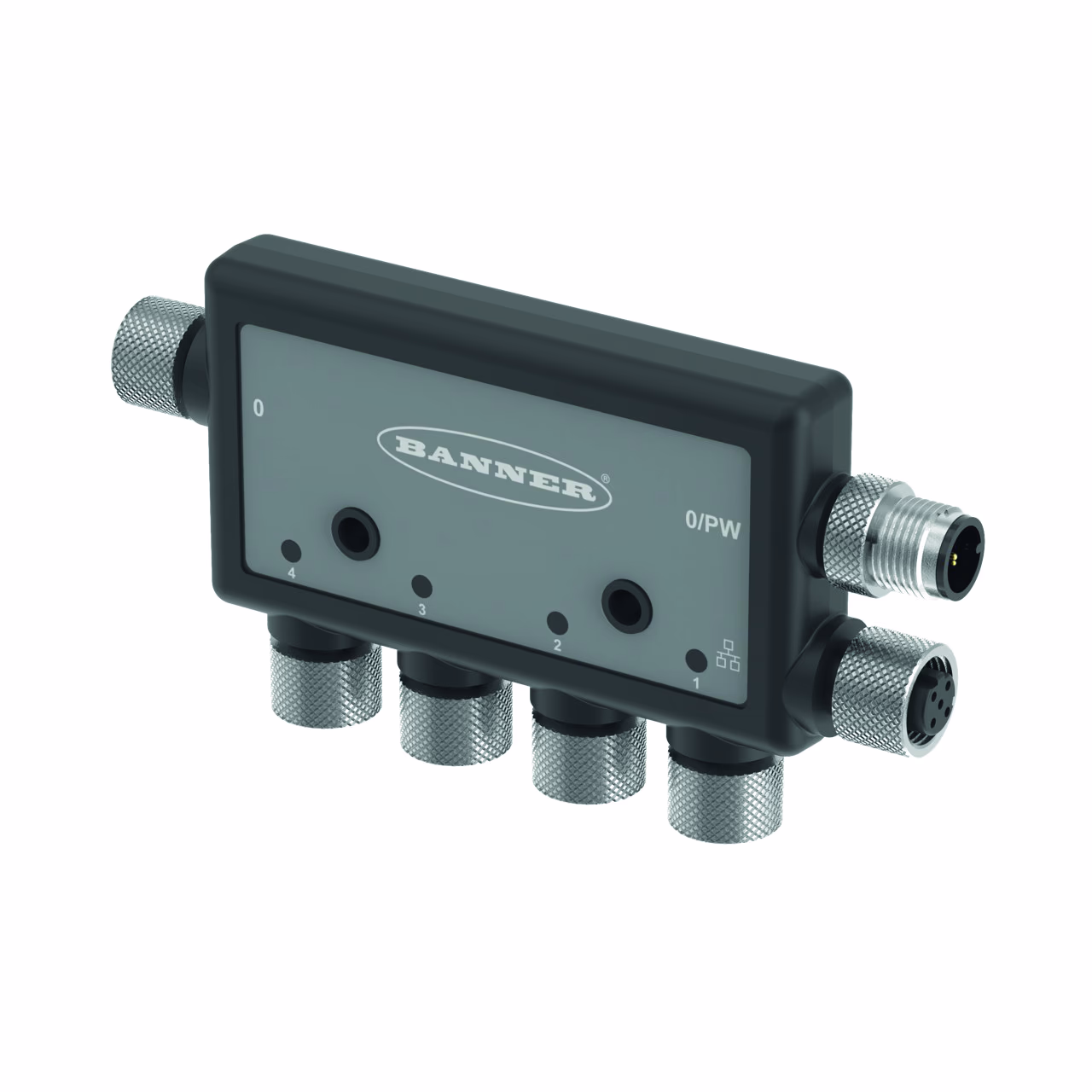

Network Controller DXMR90-4K
Network Controller
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Antenna connection | No radio participant |
| Approvals | CE, UKCA |
| Cascadable | Yes |
| Communication protocol | EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS485 |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 16 mm x 121.7 mm x 63.5 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PC |
| Operating voltage | DC |
| Protection class | IP67 |
| Runs with battery | No |
