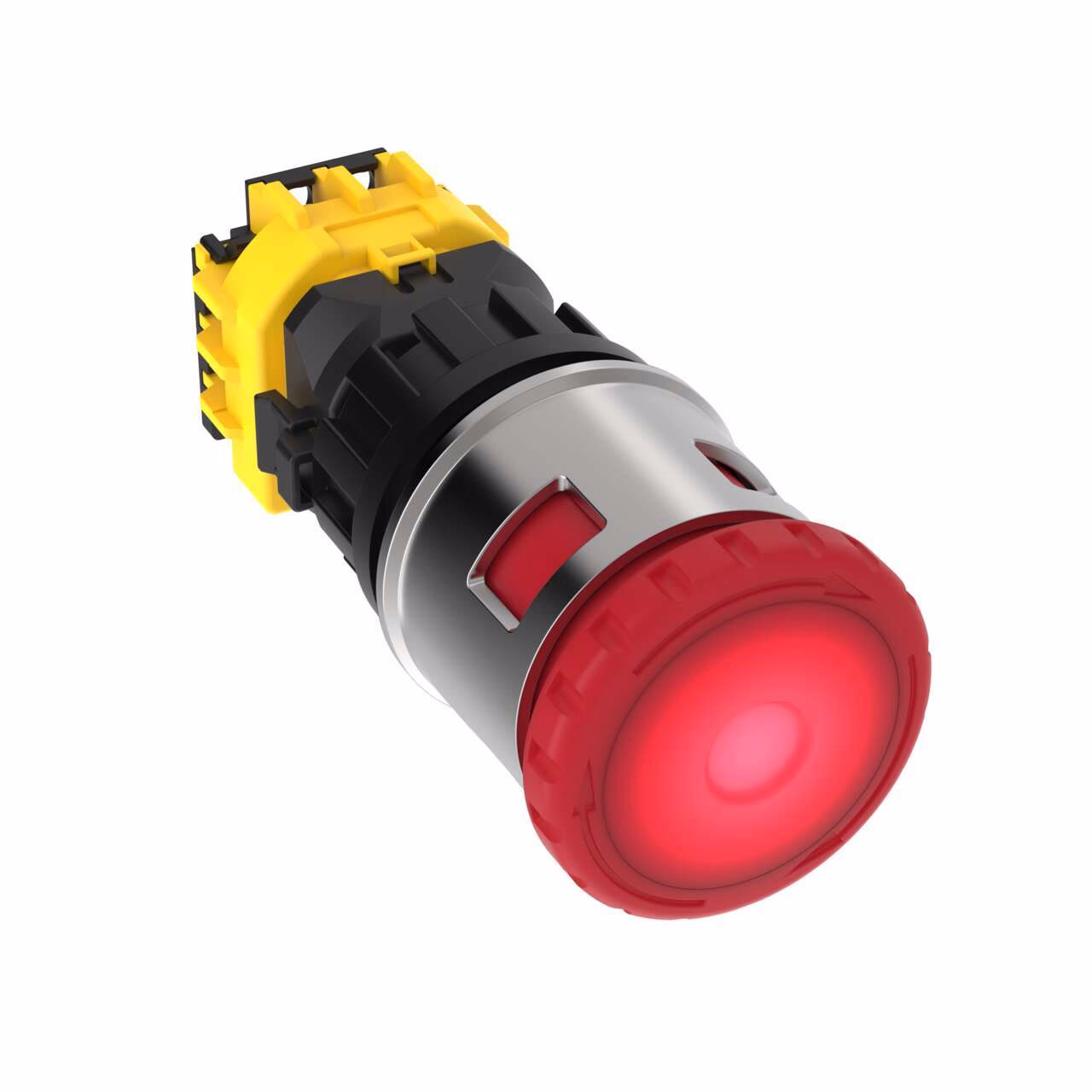

Panel Mount Emergency Stop Button – Banner – SSA-EB1ML2P-12
SSA-EB1 Panel-mount Emergency Stop Push Button
Lockable Illuminated (PUSH ON) 44 mm Actuator
Contacts: 2NC/1NO
Screw Terminals; 30 mm Mounting hole
| Actuated Color | Red |
|---|---|
| Armed Color (Solid) | OFF |
| Button Diameter (mm) | 44 |
| Contact Quantity | 2 NC, 1 NO |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 105 x 37 x 44 |
| Illumination Type | Button |
| Max Operating Temperature (C) | 55 |
| Min Operating Temperature (C) | -25 |
| Mounting Thread/Style | Panel |
| Actuation | Twist-to-Release |
| Device type | Push Button |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| Feature | Illuminated, Lockable |
| Housing Style | Base |
| Item Status | RELEASED |
| Operating voltage | 21.6-26.4 V ac/dc |
| Protection class shaft | IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polycarbonate |
| Voltage supply connection | Screw Terminal |
Description
SSA-EB1 Panel-mount Emergency Stop Push Button
Lockable Illuminated (PUSH ON) 44 mm Actuator
Contacts: 2NC/1NO
Screw Terminals; 30 mm Mounting hole
