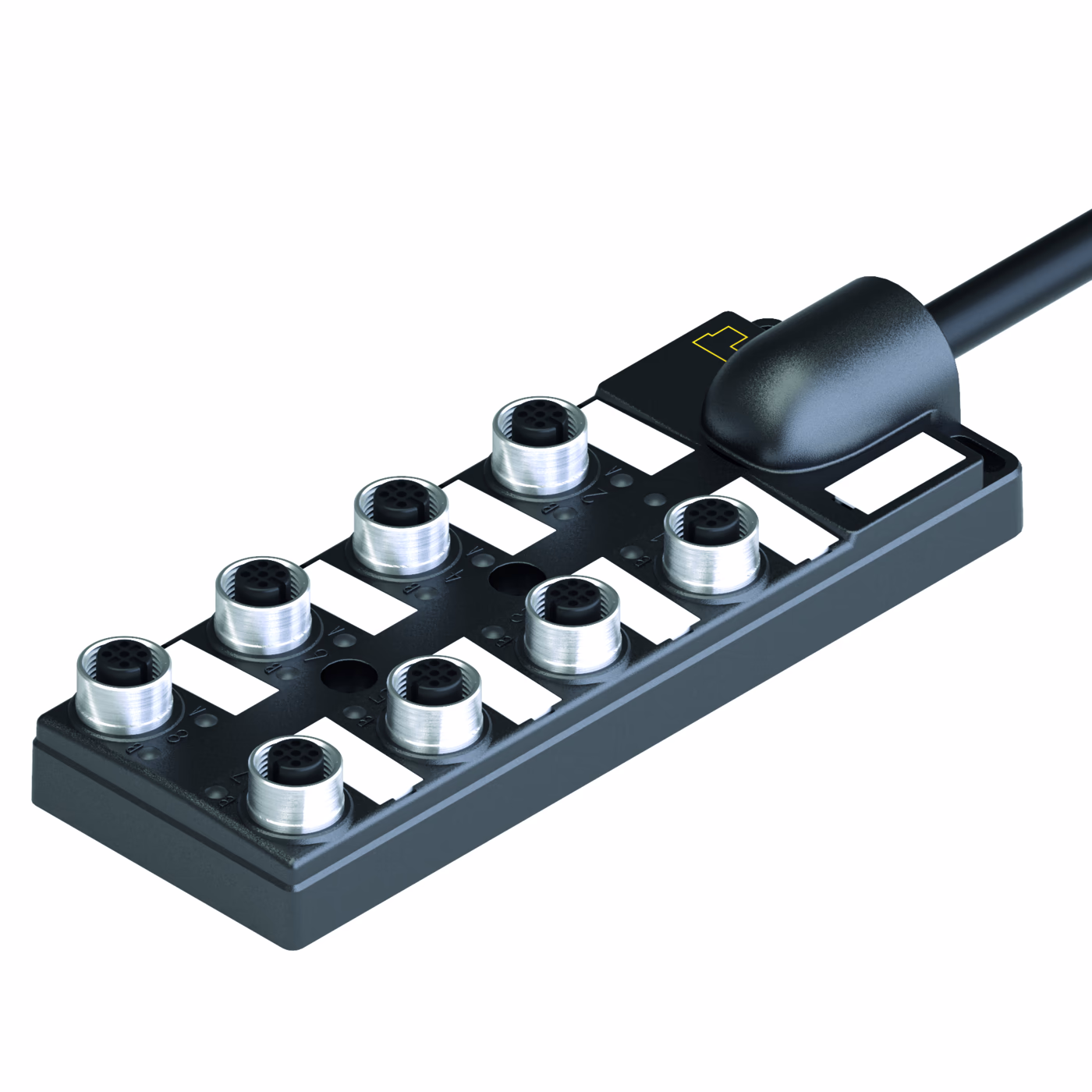

Passive Actuator/Sensor Box, M12 ? 1 TB-8M12-4-10/TXL
Passive Actuator/Sensor Box, M12 ? 1
| Application | Signal |
|---|---|
| Approvals | cULus |
| Cable color | Black |
| Cable diameter (mm) | 10 |
| Cable length (m) | 10 |
| Cable quality | PUR |
| Group terminal | Cable |
| Number of Conductors | 8 |
| Number of pins | 3+PE |
| Number of Ports | 8 |
| Port | M12 × 1 |
| Protection class | IP67 |
| Voltage output | 30 |
| Core cross section mm? | 0.82 |
