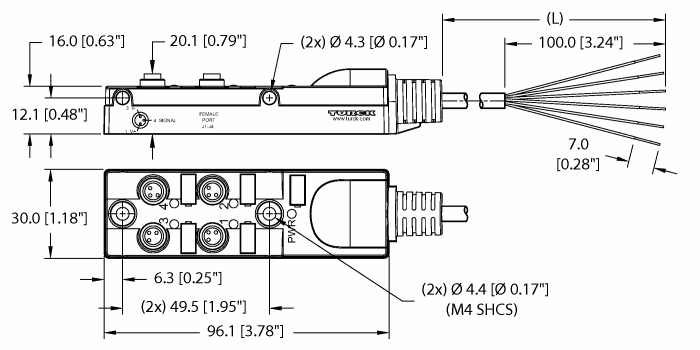

Passive Actuator/Sensor Junction Box, 4 Ports TB-4M8Z-3-3
Passive Actuator/Sensor Junction Box, 4 Ports
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | 5 |
| Approvals | CE, RoHS, UKCA |
| Cable color | Black |
| Cable length (m) | 3 |
| Cable quality | PVC |
| Number of Conductors | 6 |
| Number of pins | 3 |
| Number of Ports | 4 |
| Voltage output | 30 |
| Cable diameter (mm) | 5.13 |
| Group terminal | Cable |
| Homerun Exit Location | Side output |
| Overall shield | Drain, Foil |
| Port | Ø 8 mm |
