Photoelectric Sensor LT7PLVQ
Photoelectric Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Communication protocol | RS422 |
| Connector type | M12 × 1 |
| Design | Rectangular |

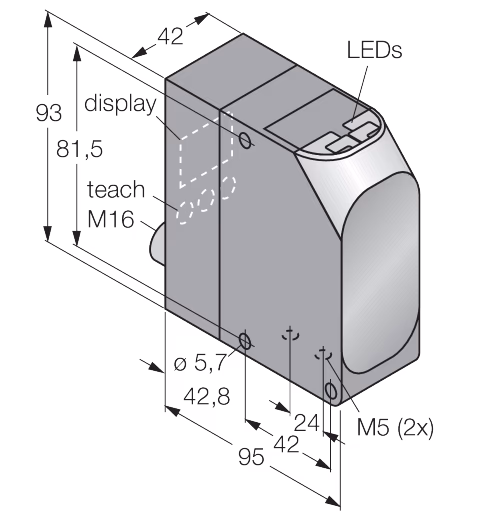

| Dimensions | 95 mm x 42 mm x 93 mm |
| Electrical output | Connector |
| Function | Retroreflective Sensor |
| Housing material | Plastic |
| Housing quality | ABS |
| Laser class | 1 |
| Light type | IR |
| Max. range (mm) | 250000 |
| Operating mode | Time-of-Flight |
| Output function | PNP |
| Protection class | IP67 |
| Special features | Laser, Pushbutton |
| Switching element function | 2 x NO contact |
| Wavelength (nm) | 900 |
