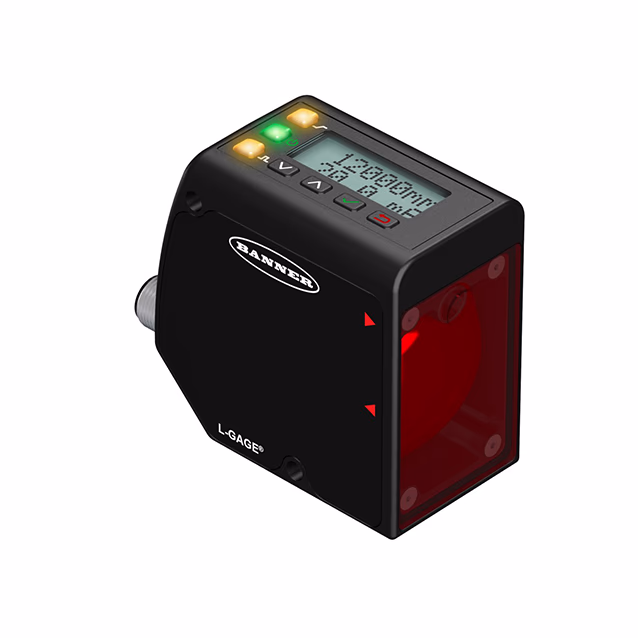

Photoelectric Sensor LTF24KC2LDQ
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 77 mm x 26 mm x 56 mm |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Metal |
| Housing quality | Zinc Alloy Die-Cast |
| Laser class | 2 |
| Light type | Red |
| Max. range (mm) | 24000 |
| Operating mode | Time-of-Flight |
| Optical resolution (mm) | 3 |
| Output function | PNP |
| Protection class | IP67 |
| Special features | keep/defer, Pump function |
| Switching element function | NO/NC |
| Wavelength (nm) | 660 |
