Photoelectric Sensor PD45VP6C100Q
Photoelectric Sensor
| Ambient temperature max. (°C) | 45 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Cable length (m) | 0.15 |
| Connector type | M12 × 1 |
| Design | Rectangular |

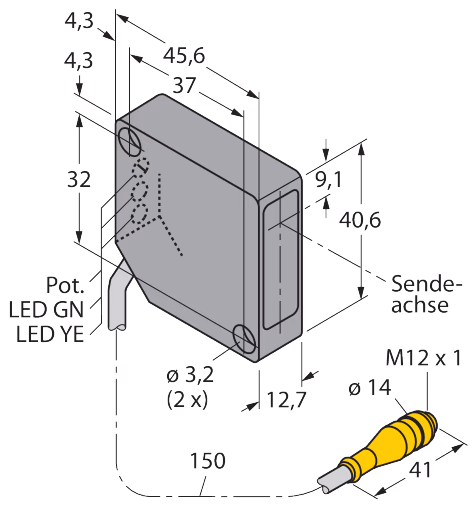

| Dimensions | 45.6 mm x 12.7 mm x 40.6 mm |
| Electrical output | Cable with connector |
| Focal distance (mm) | 102 |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 102 |
| Operating mode | Convergent |
| Output function | PNP |
| Protection class | IP54 |
| Setting option | Potentiometer |
| Special features | Laser |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 2.5 |
| Wavelength (nm) | 650 |
| Laser class | î©› 2 |
