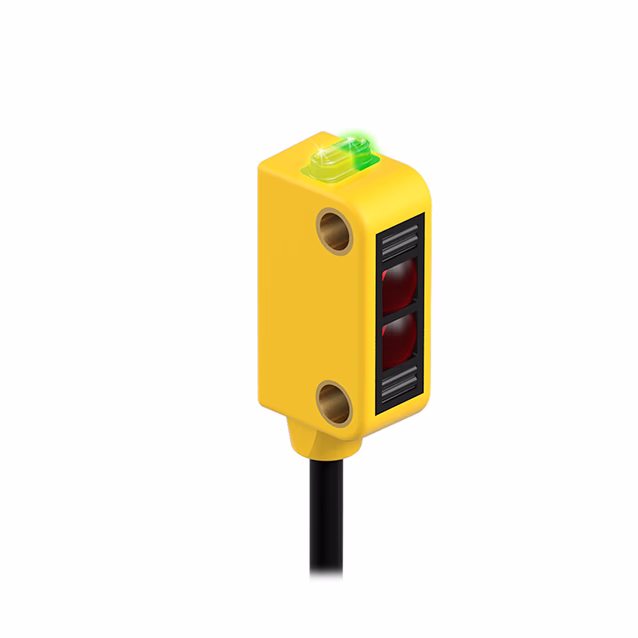

Photoelectric Sensor Q12AB6FF15
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 2 |
| Design | Rectangular |
| Dimensions | 12.4 mm x 8 mm x 26.6 mm |
| Electrical output | Cable |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 15 |
| Operating mode | Background suppression, non-adjustable |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Switching element function | Light operation, NO contact |
| Wavelength (nm) | 640 |
