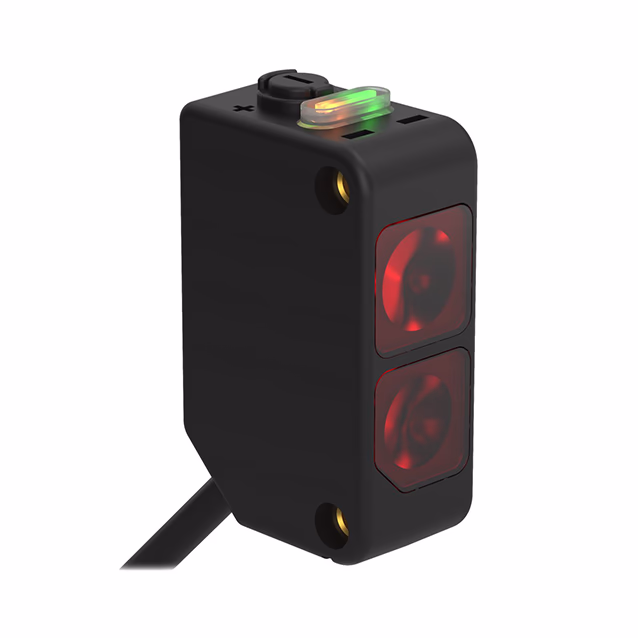

Photoelectric Sensor Q20PDVSQ5
Photoelectric Sensor
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 0.15 |
| Connector type | M12 × 1 |
| Construction size | 20 x 12 x 32 mm |
| Design | Rectangular |
| Dimensions | 20 mm x 12 mm x 32 mm |
| Electrical output | Cable with connector |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | ABS |
| Light type | Red |
| Max. range (mm) | 250 |
| Operating mode | Diffuse |
| Output function | PNP |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Switching element function | Complementary contact |
| Wavelength (nm) | 660 |
