Photoelectric Sensor Q26PXLPQ7
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Connector type | M8 x 1 |
| Design | Rectangular |

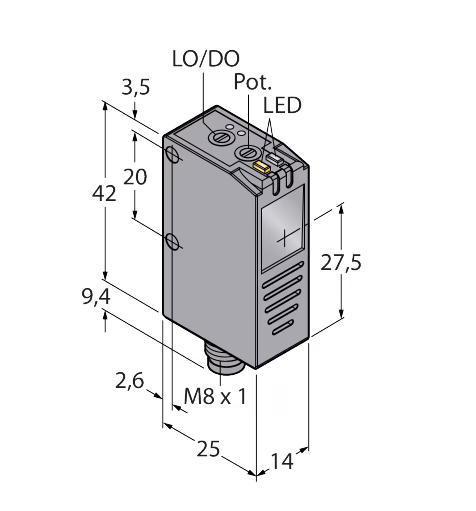

| Dimensions | 25 mm x 14 mm x 42 mm |
| Electrical output | Connector |
| Function | Retroreflective Sensor |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 800 |
| Operating mode | Polarized (coaxial) |
| Output function | PNP |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Special features | Clear object detection |
| Switching element function | dark operation, NO contact |
| Switching frequency (kHz) | 4 |
| Wavelength (nm) | 660 |
