Photoelectric Sensor Q45VR2DLQ
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connector type | 7/8″ |
| Design | Rectangular |

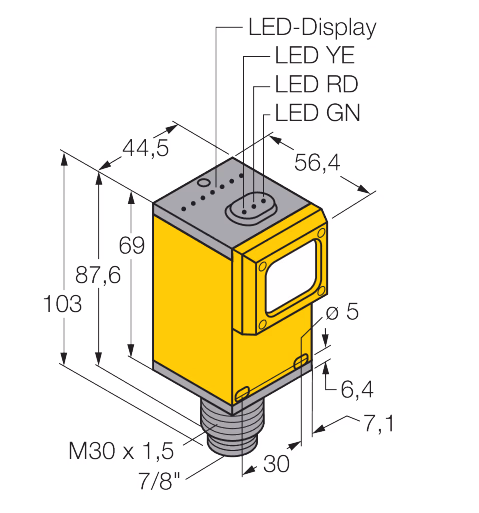

| Dimensions | 30 mm x 56.4 mm x 44.5 mm x 101.6 mm |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | IR |
| Max. range (mm) | 1800 |
| Operating mode | Diffuse |
| Output function | Relay output |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Special features | keep/defer |
| Switching element function | Complementary contact |
| Wavelength (nm) | 880 |
