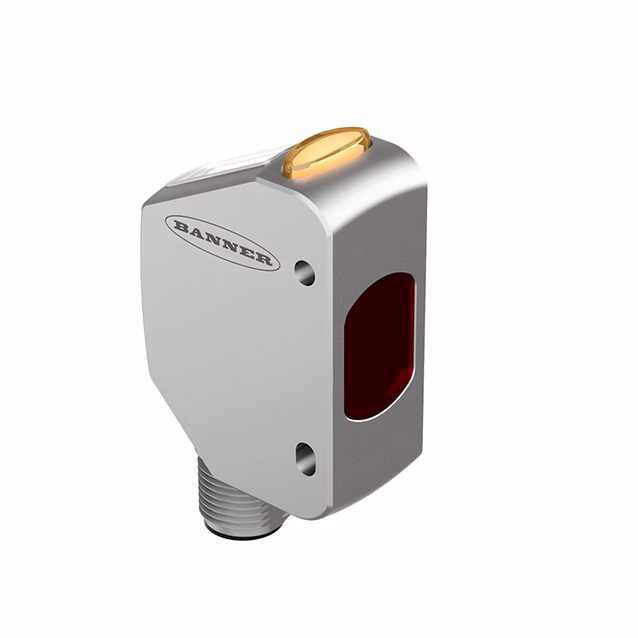

Photoelectric Sensor Q4XFILAF610-Q8
Photoelectric Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 33.5 mm x 18 mm x 57.5 mm |
| Display | 4-digit 7-segment LED display |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Stainless steel |
| Housing quality | 1.4404 (AISI 316L) |
| Laser class | 1 |
| Light type | Red |
| Max. range (mm) | 610 |
| Operating mode | Background/foreground suppression |
| Optical resolution (mm) | 2 |
| Output function | Analog output |
| Protection class | IP67 |
| Special features | Chemical-resistant |
| Wavelength (nm) | 655 |
