Photoelectric Sensor Q50APY W/30
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Cable length (m) | 9 |
| Design | Rectangular |

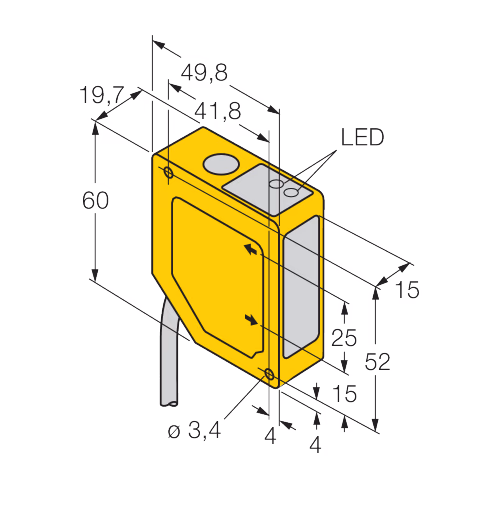

| Dimensions | 49.8 mm x 19.7 mm x 60 mm |
| Electrical output | Cable |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | ABS/Polycarbonate |
| Light type | IR |
| Max. range (mm) | 200 |
| Operating mode | Triangulation |
| Output function | PNP |
| Protection class | IP67 |
| Switching element function | NO/NC |
| Wavelength (nm) | 880 |
