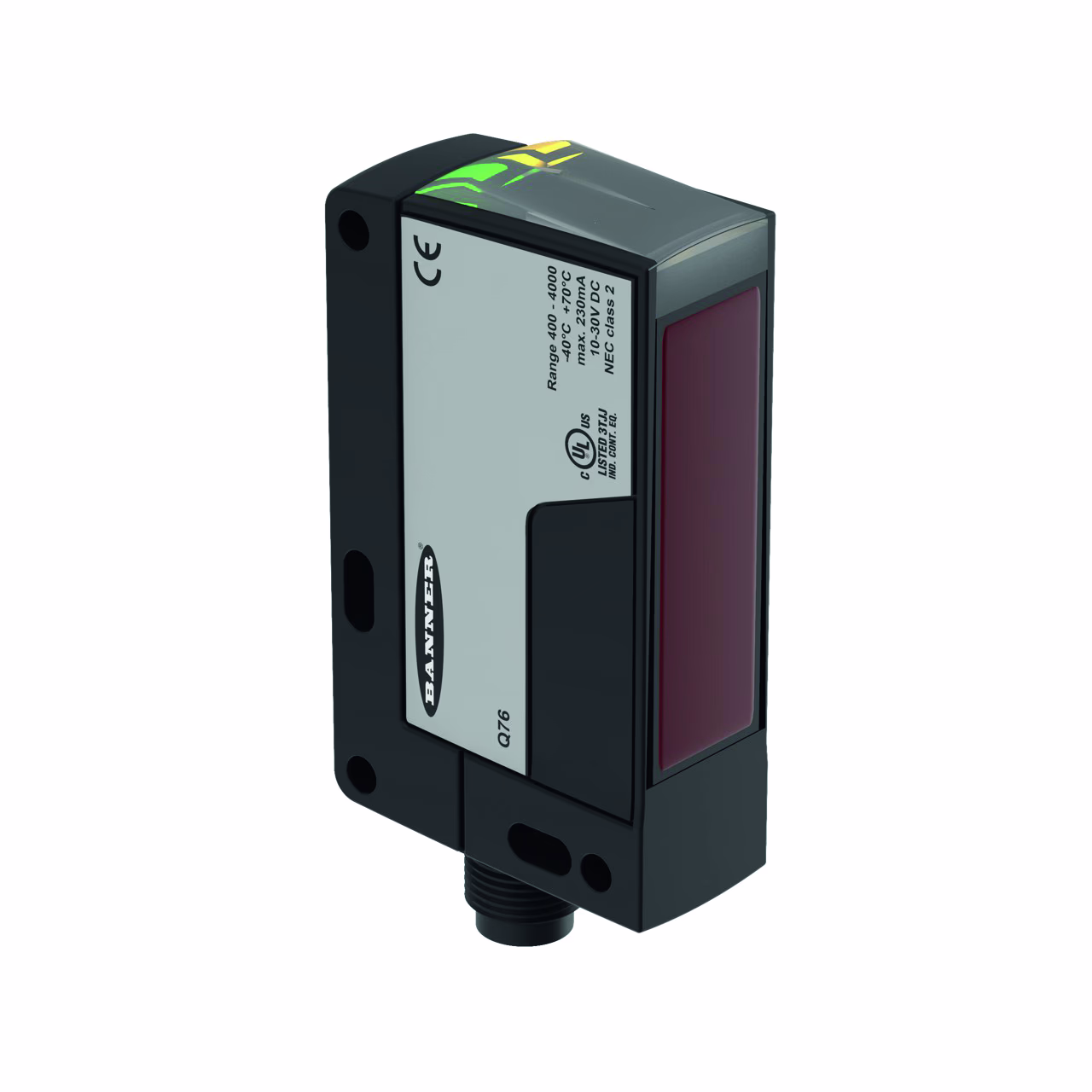

Photoelectric Sensor Q76E-VN-ZLVC-Q8
Photoelectric Sensor
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | CE, cULus |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 45.3 mm x 20.5 mm x 87.4 mm |
| Electrical output | Connector |
| Function | Retroreflective Sensor |
| Housing material | Plastic |
| Housing quality | PC |
| Light type | Red |
| Max. range (mm) | 4000 |
| Optical resolution (mm) | 19 |
| Output function | NPN |
| Protection class | IP67 |
| Setting option | Push Button |
| Switching element function | Complementary contact |
| Wavelength (nm) | 620 |
