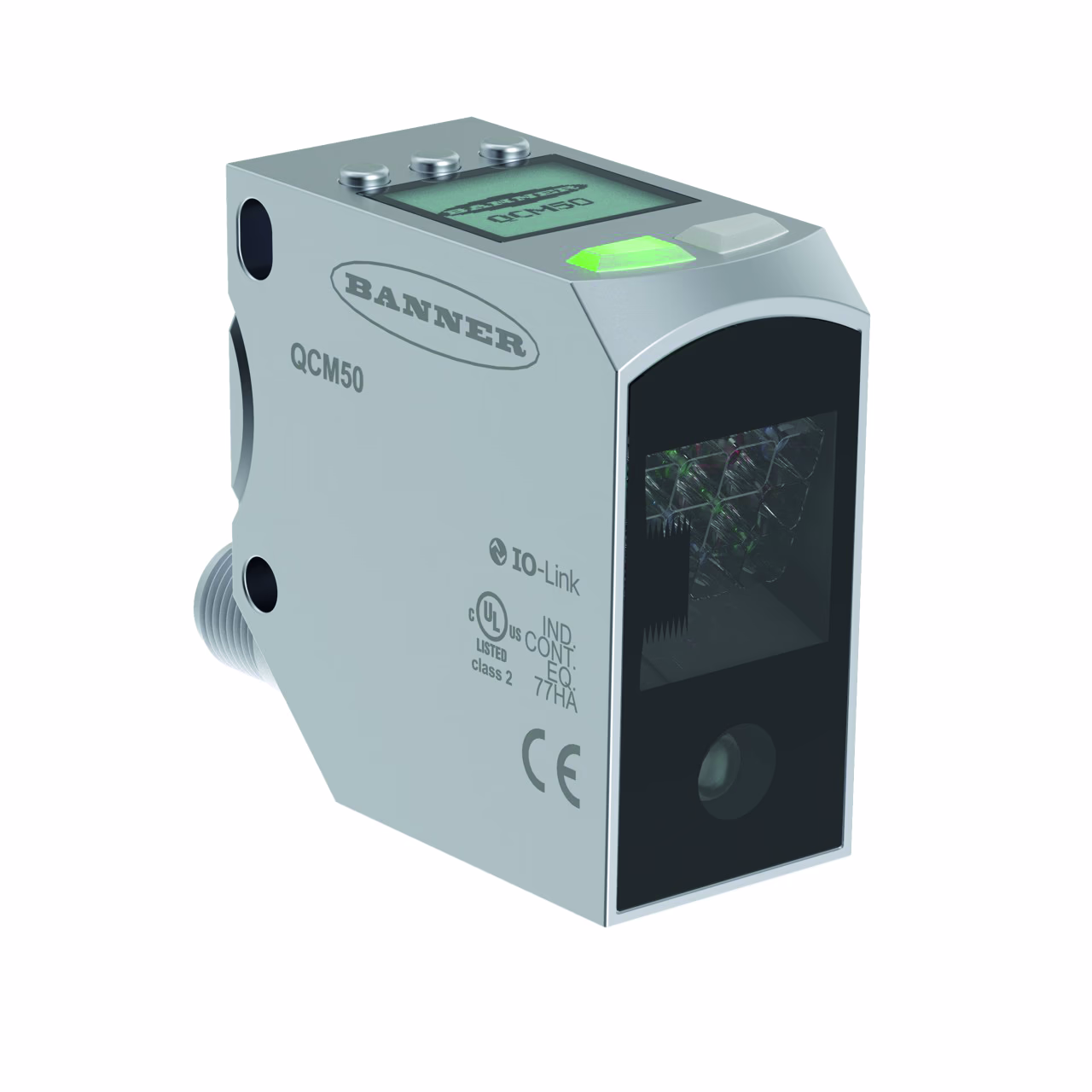

Photoelectric Sensor QCM50-K5D60-Q8-8
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Approvals | CE, cULus |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 50 mm x 25 mm x 50.5 mm |
| Electrical output | Connector |
| Function | Inspection sensor |
| Housing material | Die-cast zinc |
| Light type | White |
| Max. range (mm) | 150 |
| Operating mode | Color sensor |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | IO-Link, Push Button |
| Switching element function | NO contact |
| Switching frequency (kHz) | 1.5 |
