Photoelectric Sensor QM426E
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 2 |
| Design | Rectangular |

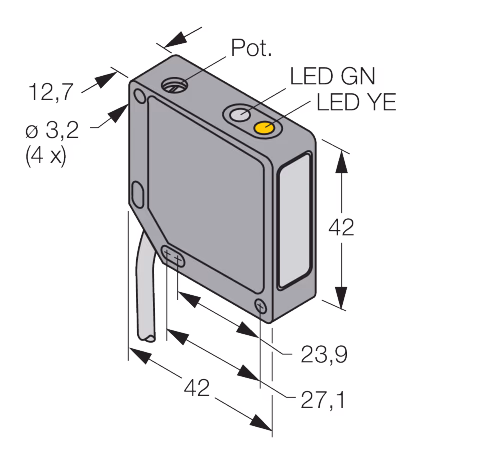

| Dimensions | 42 mm x 12.7 mm x 42 mm |
| Electrical output | Cable |
| Function | Opposed mode sensor |
| Housing material | Metal |
| Housing quality | Zinc Alloy Die-Cast |
| Light type | IR |
| Max. range (mm) | 10000 |
| Operating mode | Emitter |
| Protection class | IP67 |
| Wavelength (nm) | 880 |
