Photoelectric Sensor QMT42VP6FF1500Q
Photoelectric Sensor
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connector type | M12 × 1 |
| Design | Rectangular |

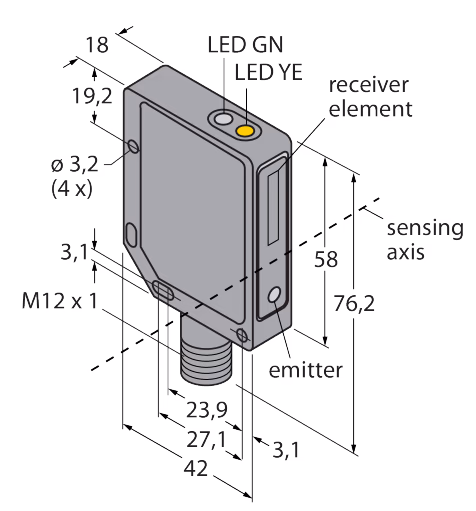

| Dimensions | 42 mm x 18 mm x 76.2 mm |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Metal |
| Housing quality | Zinc Alloy Die-Cast |
| Light type | IR |
| Max. range (mm) | 1500 |
| Operating mode | Background suppression, non-adjustable |
| Output function | PNP |
| Protection class | IP67 |
| Switching element function | NO/NC |
| Wavelength (nm) | 880 |
