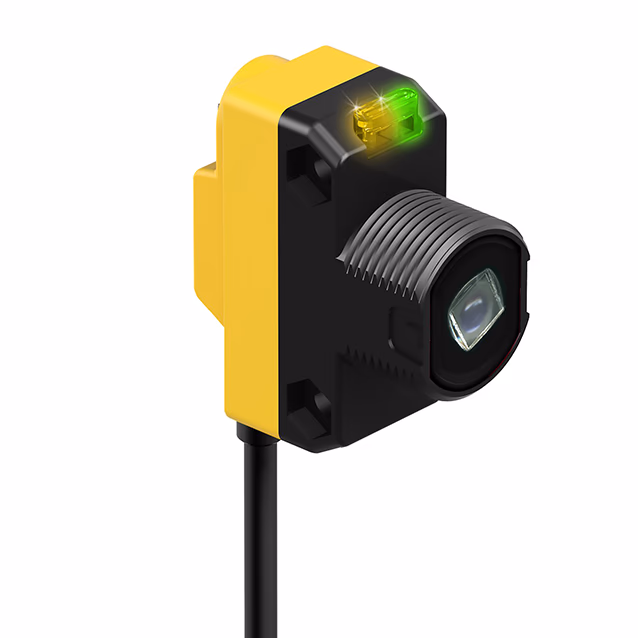

Photoelectric Sensor QS186LEQ
Photoelectric Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Cable length (m) | 0.15 |
| Connector type | M8 x 1 |
| Design | Rectangular with thread |
| Dimensions | 18 mm x 31 mm x 15 mm x 35 mm |
| Electrical output | Cable with connector |
| Function | Opposed mode sensor |
| Housing material | Plastic |
| Housing quality | ABS |
| Laser class | 1 |
| Light type | Red |
| Max. range (mm) | 15000 |
| Operating mode | Laser Emitter |
| Protection class | IP67 |
| Special features | Laser |
| Wavelength (nm) | 650 |
