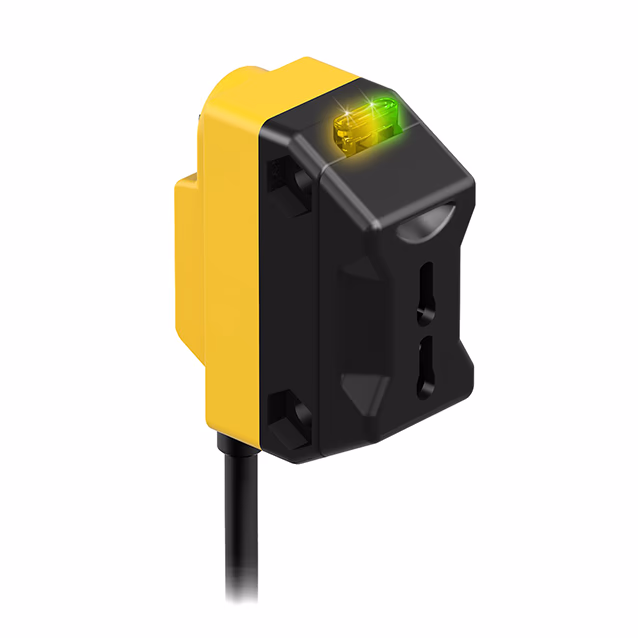

Photoelectric Sensor QS18EK6FPQ
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 0.15 |
| Communication protocol | IO-Link |
| Connector type | M8 x 1 |
| Construction size | 27.5 x 15 x 35 mm |
| Design | Rectangular |
| Dimensions | 27.5 mm x 15 mm x 35 mm |
| Electrical output | Cable with connector |
| Function | Fiber optic sensor |
| Housing material | Plastic |
| Housing quality | ABS |
| Light type | Red |
| Measuring principle | Optical |
| Operating mode | Plastic fiber |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Special features | Pushbutton, Teach input |
| Switching element function | NO/NC |
| Wavelength (nm) | 660 |
