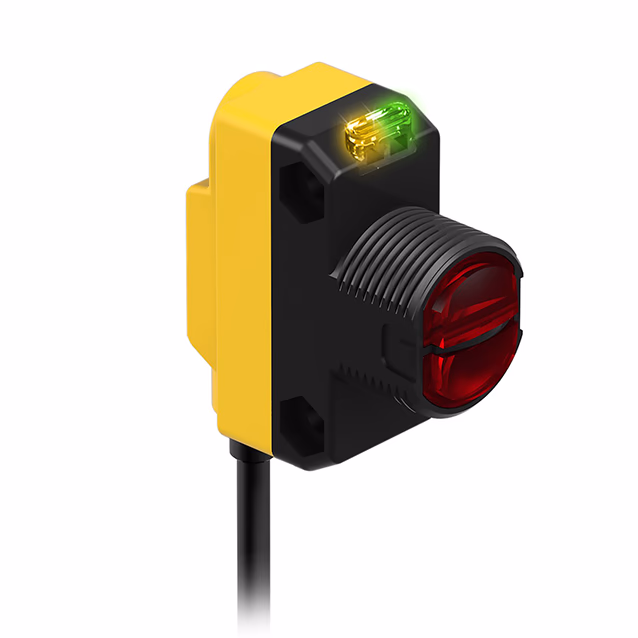

Photoelectric Sensor QS18VN6CV15
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 2 |
| Construction size | 33.2 x 15 x 35 mm |
| Design | Rectangular with thread |
| Dimensions | 18 mm x 33.2 mm x 15 mm x 35 mm |
| Electrical output | Cable |
| Focal distance (mm) | 16 |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | ABS |
| Light type | Red |
| Max. range (mm) | 16 |
| Operating mode | Convergent |
| Output function | NPN |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Switching element function | NO/NC |
| Wavelength (nm) | 630 |
