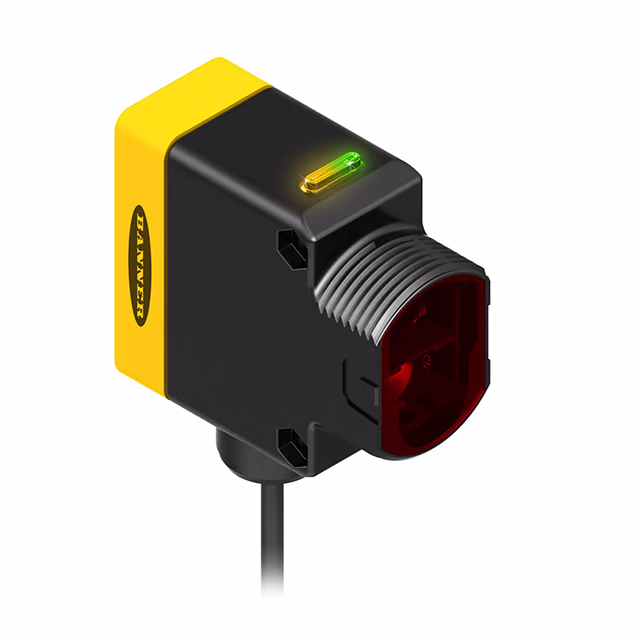

Photoelectric Sensor QS30AF600
Photoelectric Sensor
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 2 |
| Design | Rectangular with thread |
| Dimensions | 30 mm x 35 mm x 22 mm x 53 mm |
| Electrical output | Cable |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 600 |
| Operating mode | adjustable, Background suppression |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | Mechanical Screw |
| Special features | keep/defer |
| Switching element function | NO contact |
| Wavelength (nm) | 660 |
